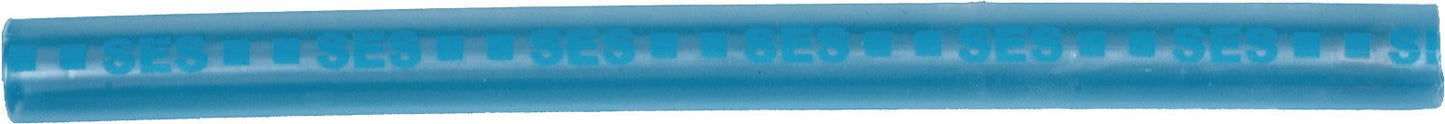

Adhesive Heat Shrink Tubing, 16 to 8 AWG, Clear/Blue, 6" Length, 0.35" ID Before and 0.08" ID After Shrinkage, 4:1 Shrink Ratio
(Pack of
8)
SKU:16325 Item#: 16325
• 4:1 shrink ratio
• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-33
Frequently Bought Together
MINI Fuse 30A Green
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
ATO/ATC Fuse 10A Red
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 4 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 14 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 24 to 12 AWG Clear/White
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID 25'
Couldn't load pickup availability
Product Description
• 4:1 shrink ratio• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 16325 |
|---|---|
| Type | Pre-Cut |
| Wire Gauge Coverage | 16-8 AWG |
| Length | 6 " |
| Color | Clear/Blue |
| I.D. Before Shrinkage | 0.350 " |
| I.D. After Shrinkage | 0.080 " |
| Shrink Ratio | 4 to 1 |
| Dielectric Strength | 500 V/mm |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
