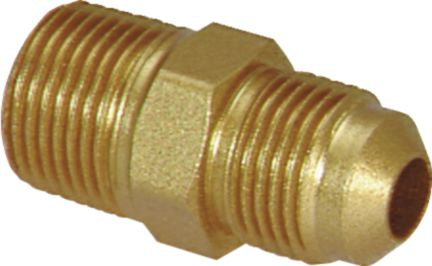

Air Line Connector, Brass, SAE 45° Flare, 1/8-27 x 1/4", Male NPT x Tube, 1400PSI
(Pack of
10)
• Meets UL standards for hazardous liquid, fuel equipment, refrigeration and gas• Meets code specifications for pressure piping, SAE, ASA, ASME and military standards• Compatible tubing: Copper, brass, aluminum, welded steel• Meets burst pressures of standard tubing: Up to 5,000 PSI with welded tubing; up to 3,500 PSI with copper tubing, depending on size• Temperature ranges: –65°F to +250°F (–54°C to +121°C) at maximum operating pressure; up to 400°F (204°C) at pressures under 1,000 PSI
• Applications: Fuel, air and oil lines; LP and natural gas lines; mobile equipment, machinery, air compressors, oil burners, air conditioning and refrigeration
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-8
Frequently Bought Together
Bulkhead Pipe Adapter Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18
Couldn't load pickup availability
Inverted Flare Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Square Head Plug Steel Black 1/4-18
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 1/8-27 x 1/8-27
Couldn't load pickup availability
Non-Perforated Clamp 316 SS #4 7/16 to 11/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
Product Description
• Meets UL standards for hazardous liquid, fuel equipment, refrigeration and gas• Meets code specifications for pressure piping, SAE, ASA, ASME and military standards• Compatible tubing: Copper, brass, aluminum, welded steel• Meets burst pressures of standard tubing: Up to 5,000 PSI with welded tubing; up to 3,500 PSI with copper tubing, depending on size• Temperature ranges: –65°F to +250°F (–54°C to +121°C) at maximum operating pressure; up to 400°F (204°C) at pressures under 1,000 PSI• Applications: Fuel, air and oil lines; LP and natural gas lines; mobile equipment, machinery, air compressors, oil burners, air conditioning and refrigeration
Technical Specifications
| Item#: | 5177 |
|---|---|
| Fitting Type | SAE 45 Degree Flare |
| Configuration | Male Connector |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/8-27 |
| Fitting Dimension B | 1/4 " |
| Working Pressure | 1,400 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.3 lb |
