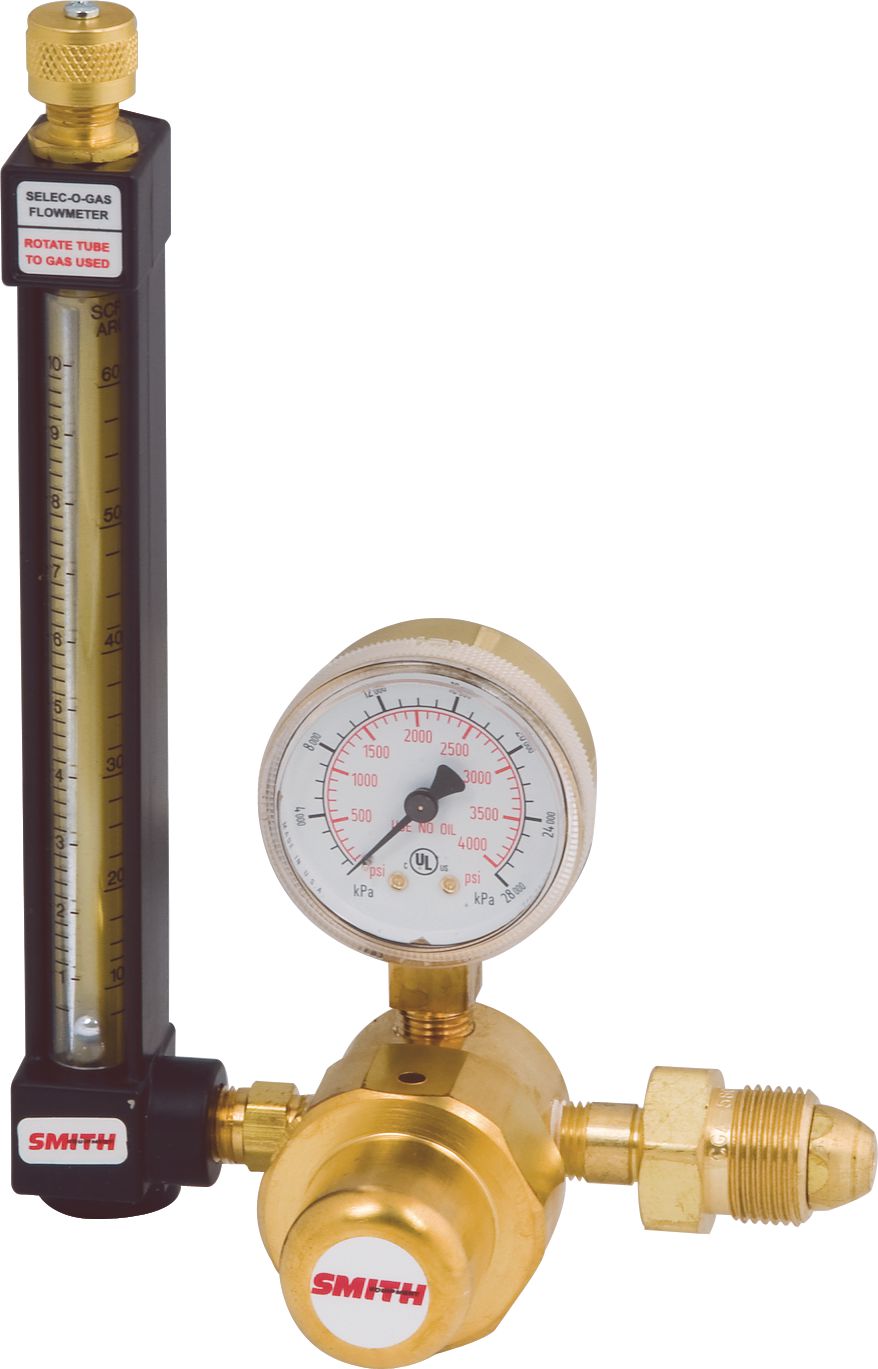

Argon Helium Carbon Dioxide Shielding Gas Regulator Flowmeter, Extra-Long, Brass
(Pack of
1)
• Accurately controls the flow of argon, helium or CO2 by incorporating a preset precision pressure regulator with a calibrated precision flowmeter
• Rugged brass construction, including solid brass body and bonnet
• Self-centering ball system provides flow accuracy and gas savings
• Extra-long, easy-to-read multi-scale flowmeter
• High-strength, impact-resistant Lexan® flow tube
• 2" (5cm) dia. pressure gauge with 4,000 PSI rating
• For TIG or MIG welding operations where accurate regulation and measurement of gas flow is essential
For gas mixtures, use the flowmeter scale for the predominant gas type, e.g. for 75% Ar-25%CO2, use the flowmeter scale for argon. Use of Regulator Flowmeter for CO2 requires CGA-320 to CGA-580 adapter CW1401.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 13-46
Frequently Bought Together
Oxy Acetylene Regulator Fuel Flashback Arrestor
Couldn't load pickup availability
Replacement Quick Connector Pin Torch Oxygen
Couldn't load pickup availability
Medium Duty Standard Acetylene Regulator
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode
Couldn't load pickup availability
Cable Connector Assembly 1/0 to 3/0 AWG
Couldn't load pickup availability
X-Cut Exothermic Cutting Rod 10,000 Deg Operating Temperature 50/Box
Couldn't load pickup availability
1/4" Id Enternal Exothermic Rod Collet
Couldn't load pickup availability
Product Description
• Accurately controls the flow of argon, helium or CO2 by incorporating a preset precision pressure regulator with a calibrated precision flowmeter• Rugged brass construction, including solid brass body and bonnet
• Self-centering ball system provides flow accuracy and gas savings
• Extra-long, easy-to-read multi-scale flowmeter
• High-strength, impact-resistant Lexan® flow tube
• 2" (5cm) dia. pressure gauge with 4,000 PSI rating
• For TIG or MIG welding operations where accurate regulation and measurement of gas flow is essential
For gas mixtures, use the flowmeter scale for the predominant gas type, e.g. for 75% Ar-25%CO2, use the flowmeter scale for argon. Use of Regulator Flowmeter for CO2 requires CGA-320 to CGA-580 adapter CW1401.
Technical Specifications
| Item#: | CW5905 |
|---|---|
| Welding Process | Oxy-Fuel (Gas) |
| Type | Argon, Helium, CO2 |
| Components | Regulator/Flowmeter |
| Description | Ar-He-Co2 Regulator Flowmeter |
| UNSPSC #: | 23271700 |
| TAA Compliant: | No |
| Weight: | 3.5 lb |
