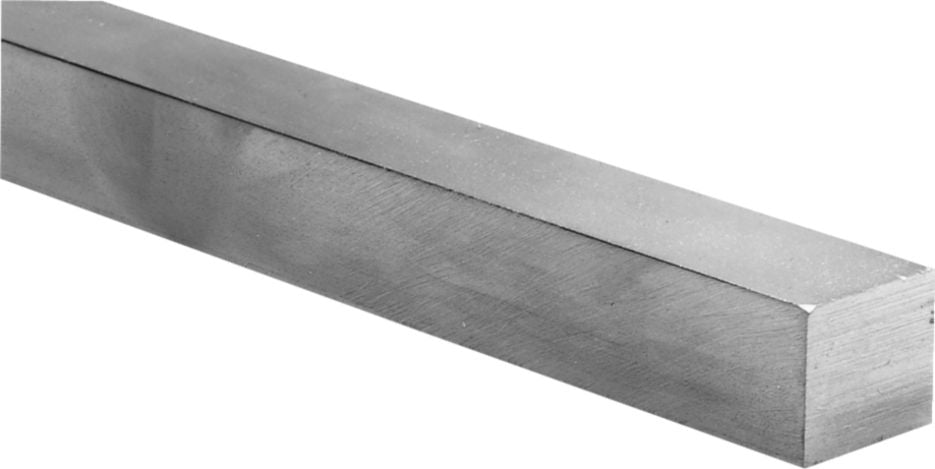

ASTM A108 Keystock, Square, Grade C1018, Steel, Zinc Finish, 3/8 x 12"
(Pack of
5)
SKU:9029 Item#: 9029
• Manufactured of cold finished steel
• Zinc-coated to prevent rust
• Smooth-cut, burr-free bars
• Clean and greaseless
• Tolerances on dimension are oversized to assure tight fit in keyways for positive, zero-backlash power transmission
12" pre-cut lengths
Couldn't load pickup availability
Catalog page#: 6-61
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
DIN 6880 Keystock Square 6mm
Couldn't load pickup availability
ASTM A108 Keystock Square 3/4"
Couldn't load pickup availability
DIN 6880 Keystock Rectangular 8 x 10mm
Couldn't load pickup availability
Hammerlock Cotter Pin Assortment 790 Pieces
Couldn't load pickup availability
Hammerlock Cotter Pin 3/16 x 1-1/2"
Couldn't load pickup availability
ASTM A108 Keystock Square 1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Manufactured of cold finished steel• Zinc-coated to prevent rust
• Smooth-cut, burr-free bars
• Clean and greaseless
• Tolerances on dimension are oversized to assure tight fit in keyways for positive, zero-backlash power transmission
12" pre-cut lengths
Technical Specifications
| Item#: | 9029 |
|---|---|
| Size | 3/8 " |
| Length | 12 " |
| Style | Square |
| Material | Carbon Steel |
| Type | Standard |
| Finish | Bright Zinc |
| Grade | C1018 |
| Specifications | ASTM-A-108 |
| Length Tolerance | +.125 / -.0625" |
| Rockwell Hardness | 80-100 B Scale |
| Thickness Tolerance | +003 / -.001" |
| UNSPSC #: | 31163208 |
| TAA Compliant: | Yes |
| Weight: | 2.4 lb |
