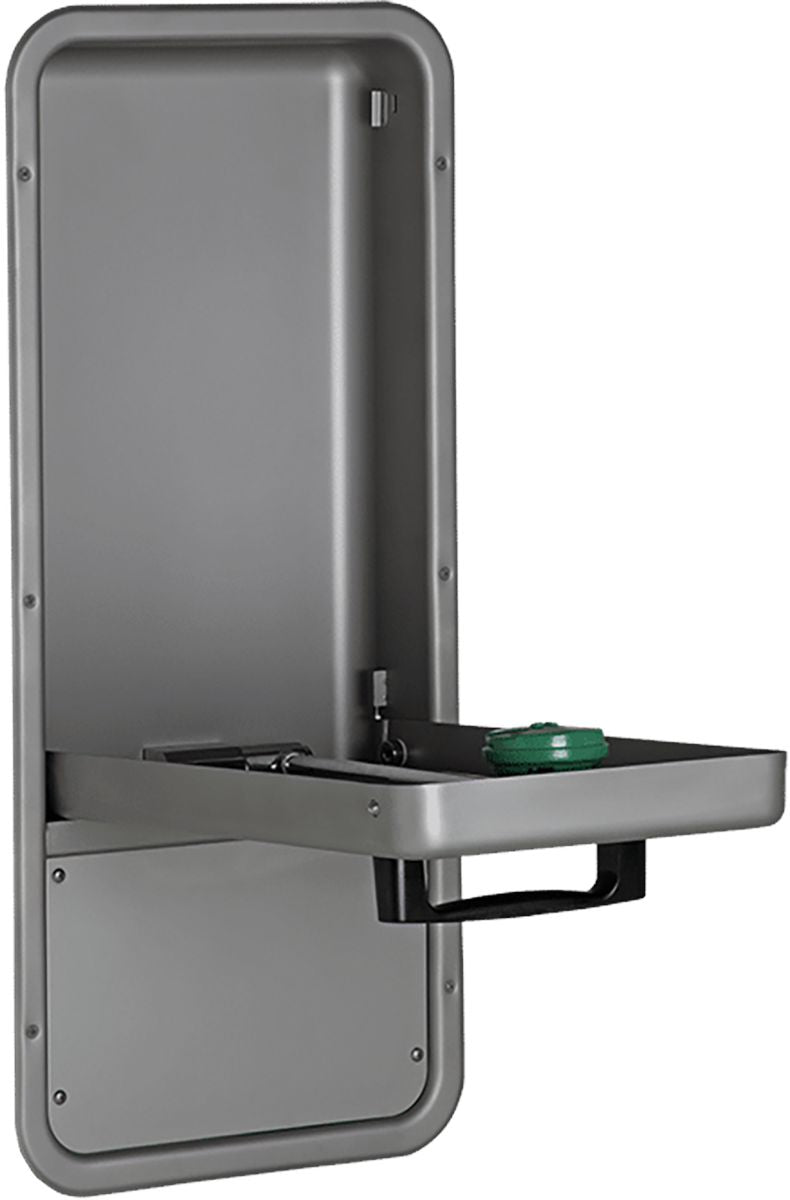

Axion MSR Barrier-Free Recessed Wall Mount Eye/Face Wash Station, Plastic, Chrome-Plated Brass, Stainless Steel, 12 gpm Flow Rate, Silver
(Pack of
1)
A barrier-free eye/face wash includes a wash head featuring an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4.2 gpm flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, wheelchair accessibility, and polished chrome-plated brass pull-down valve with easy access in-line strainer. Unit also includes brass pipe and fittings, a drain pan, a front-access maintenance panel, universal sign, 1/2" NPT(M) inlet and 2" NPT(F) drain. Operating pressure is 30 - 90 psi
• The hide-away design stays protected from debris when not in use
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
• One piece drain tray catches waste fluid during eyewash use
• Easy access exterior mounted in-line strainer
• The eye/face wash head is easily activated by the emergency equipment's pull-down design
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Emergency Shower and Eyewash
Couldn't load pickup availability
Portable Gravity Fed Eyewash 7500
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Oil-Only Sorbent Pad
Couldn't load pickup availability
Sustayn™ Recycled Univeral Sorbent Pad
Couldn't load pickup availability
PhysiciansCare Ibuprofen Pain Reliever Medication 200mg
Couldn't load pickup availability
LionGrip 8mil Nitrile Glove Black Large
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Red
Couldn't load pickup availability
Sqweeze® ZERO – Sugar Free Hydration Freeze Pops
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Eyewash Station, Double 16 oz. Screw Cap Bottle
Couldn't load pickup availability
Classic Eye Wash Station Dust Cover
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Product Description
A barrier-free eye/face wash includes a wash head featuring an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 4.2 gpm flow control, a fully recessed wall mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, wheelchair accessibility, and polished chrome-plated brass pull-down valve with easy access in-line strainer. Unit also includes brass pipe and fittings, a drain pan, a front-access maintenance panel, universal sign, 1/2" NPT(M) inlet and 2" NPT(F) drain. Operating pressure is 30 - 90 psi• The hide-away design stays protected from debris when not in use
• Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
• One piece drain tray catches waste fluid during eyewash use
• Easy access exterior mounted in-line strainer
• The eye/face wash head is easily activated by the emergency equipment's pull-down design
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647993 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified, Barrier Free Safety |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel |
| Mount Style | Wall |
| Color | Silver |
| Width | 14 " |
| Height | 32 " |
| Eye Wash Material | Plastic |
| Body Material | Stainless Steel |
| Includes | Brass Pipe and Fittings, Front Access Maintenance Panel, Inspection Tag, Universal Identification Sign |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
