Axion MSR Wall Mount Eye/Face Wash Station with Waste Trap, Plastic, Chrome-Plated Brass, Stainless Steel, 10 gpm Flow Rate, 11 in. Bowl, Green
(Pack of
1)

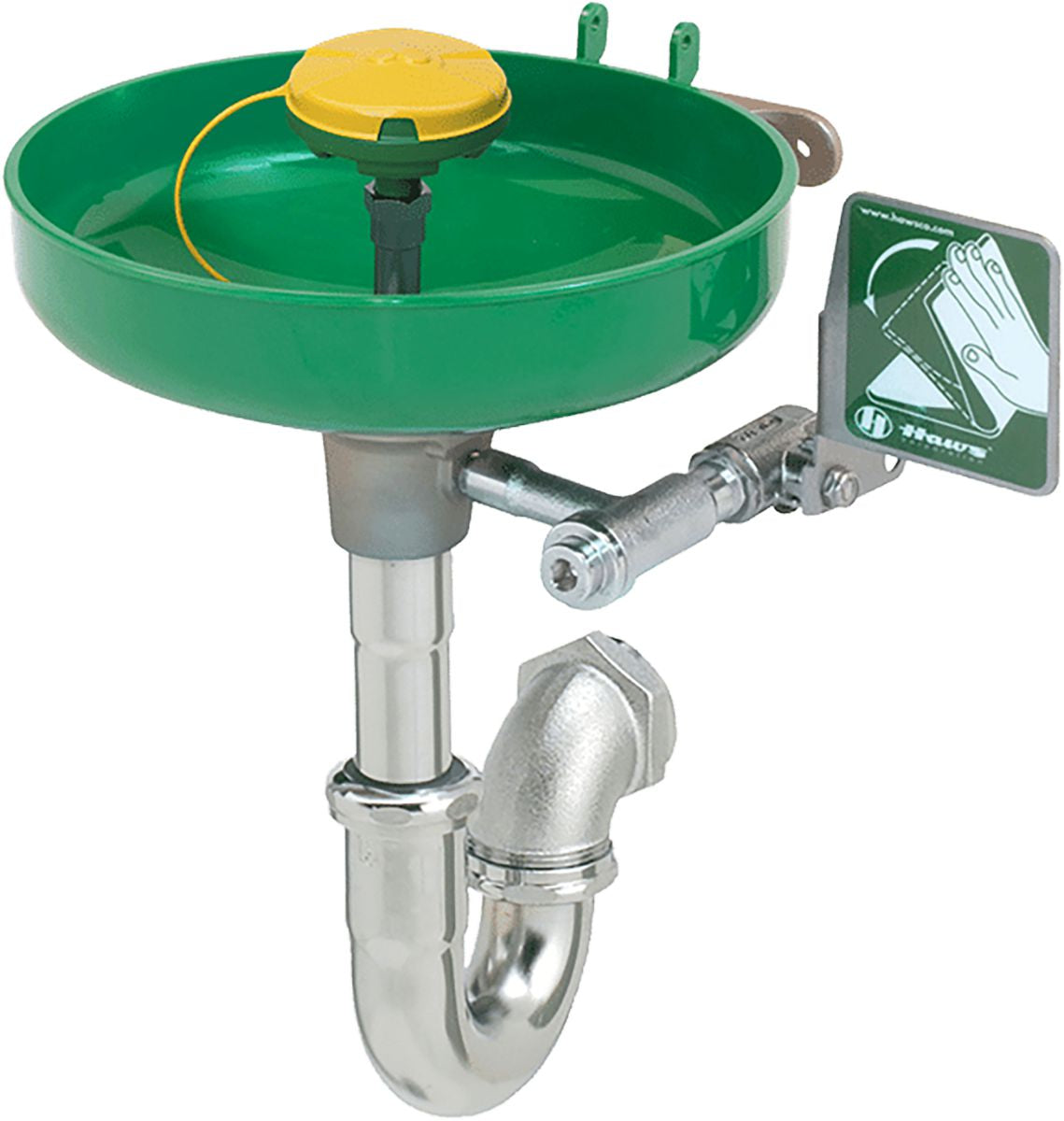

A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, tail piece and trap, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, drain trap and tailpiece, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor, aluminum wall bracket, and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT * ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
PhysiciansCare Eye Wash Sterile Isotonic Buffered Solution for Flushing&Irrigating Eyes, 4-oz Bottle
Couldn't load pickup availability
Eye Wash Bottles
Couldn't load pickup availability
Eyesaline Concentrate
Couldn't load pickup availability
Wyper Super Prep Towel 9 x 14"
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, X-Large, Box
Couldn't load pickup availability
Wyper Super Prep Towel 9 x 14"
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Portable Gravity Fed Eyewash 7501
Couldn't load pickup availability
Portable Self Contained Heated Eyewash
Couldn't load pickup availability
PhysiciansCare Eyewash Station, Single 16 oz. Screw Cap Bottle
Couldn't load pickup availability
Product Description
A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, tail piece and trap, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, drain trap and tailpiece, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor, aluminum wall bracket, and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT * ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647977 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel |
| Mount Style | Wall |
| Color | Green |
| Eyewash Bowl Diameter | 11 " |
| Width | 14-1/2 " |
| Eye Wash Material | Plastic |
| Body Material | Plastic |
| Includes | Dust Cover, Mesh in-line Strainer, Ball Valve, Stem, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
Product Restrictions
