Axion MSR Wall Mount Eye/Face Wash
(Pack of
1)

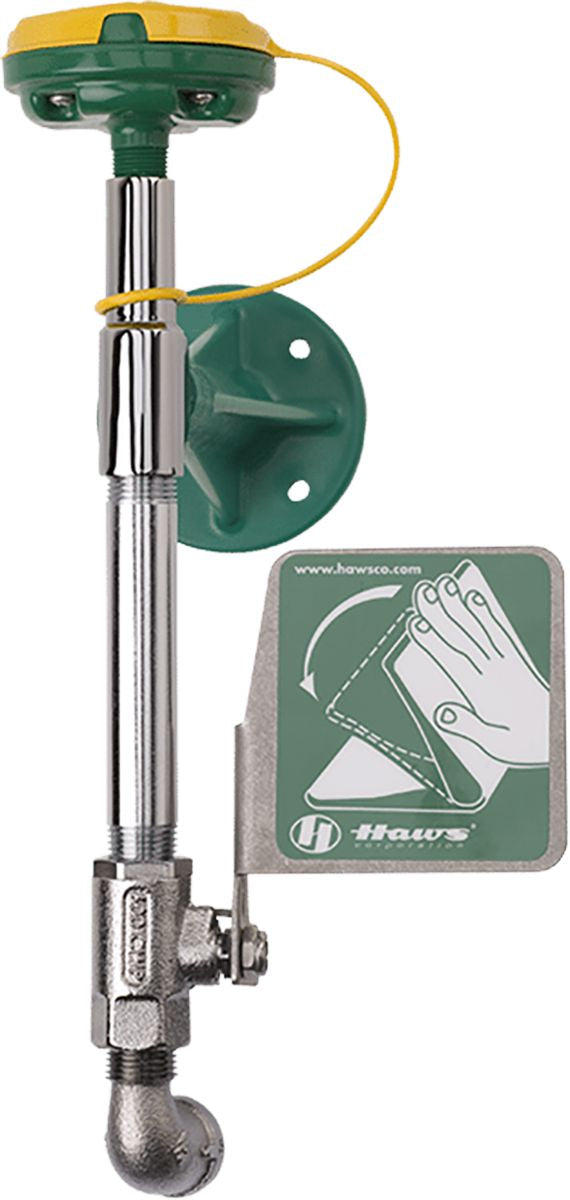

Model 7324 wall mounted eye/face wash includes an AXION® MSR eye/face wash head that features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Unit also includes a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, green molded ABS plastic wall bracket, universal sign, and 1/2" NPT inlet.
• Unit is equipped with a pop-off dust cover, so when debris is present, the irrigation process stays protected
• Easily detected and maintained, emergency equipment is equipped with safety sign and test card to record weekly testing
• Reducing installation time, eye/face wash and valve assembly is pre-built and fully water/pressure tested
• Floor drain is recommended for this unit
• ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyewash Refill Cartridge
Couldn't load pickup availability
Wall-Mount Halo™ Eyewash Station
Couldn't load pickup availability
Axion MSR Emergency Shower and Eyewash
Couldn't load pickup availability
Automotive Refinishing Tape 3/4" x 60 Yards
Couldn't load pickup availability
Round Tag Brass 1-3/8"
Couldn't load pickup availability
Rectangular Tag Brass 2 x 1"
Couldn't load pickup availability
Sqweeze® ZERO – Sugar Free Hydration Freeze Pops
Couldn't load pickup availability
LionGrip 8mil Nitrile Glove Black Large
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 13.4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Eyewash Station
Couldn't load pickup availability
Axion MSR Pedestal Mount Eye/Face Wash
Couldn't load pickup availability
Product Description
Model 7324 wall mounted eye/face wash includes an AXION® MSR eye/face wash head that features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control. Unit also includes a chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, green molded ABS plastic wall bracket, universal sign, and 1/2" NPT inlet.• Unit is equipped with a pop-off dust cover, so when debris is present, the irrigation process stays protected
• Easily detected and maintained, emergency equipment is equipped with safety sign and test card to record weekly testing
• Reducing installation time, eye/face wash and valve assembly is pre-built and fully water/pressure tested
• Floor drain is recommended for this unit
• ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647979 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Stainless Steel |
| Mount Style | Wall |
| Color | Green |
| Width | 5 " |
| Height | 13 " |
| Eye Wash Material | Plastic |
| Includes | Inspection Tag, Universal Identification Sign, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
