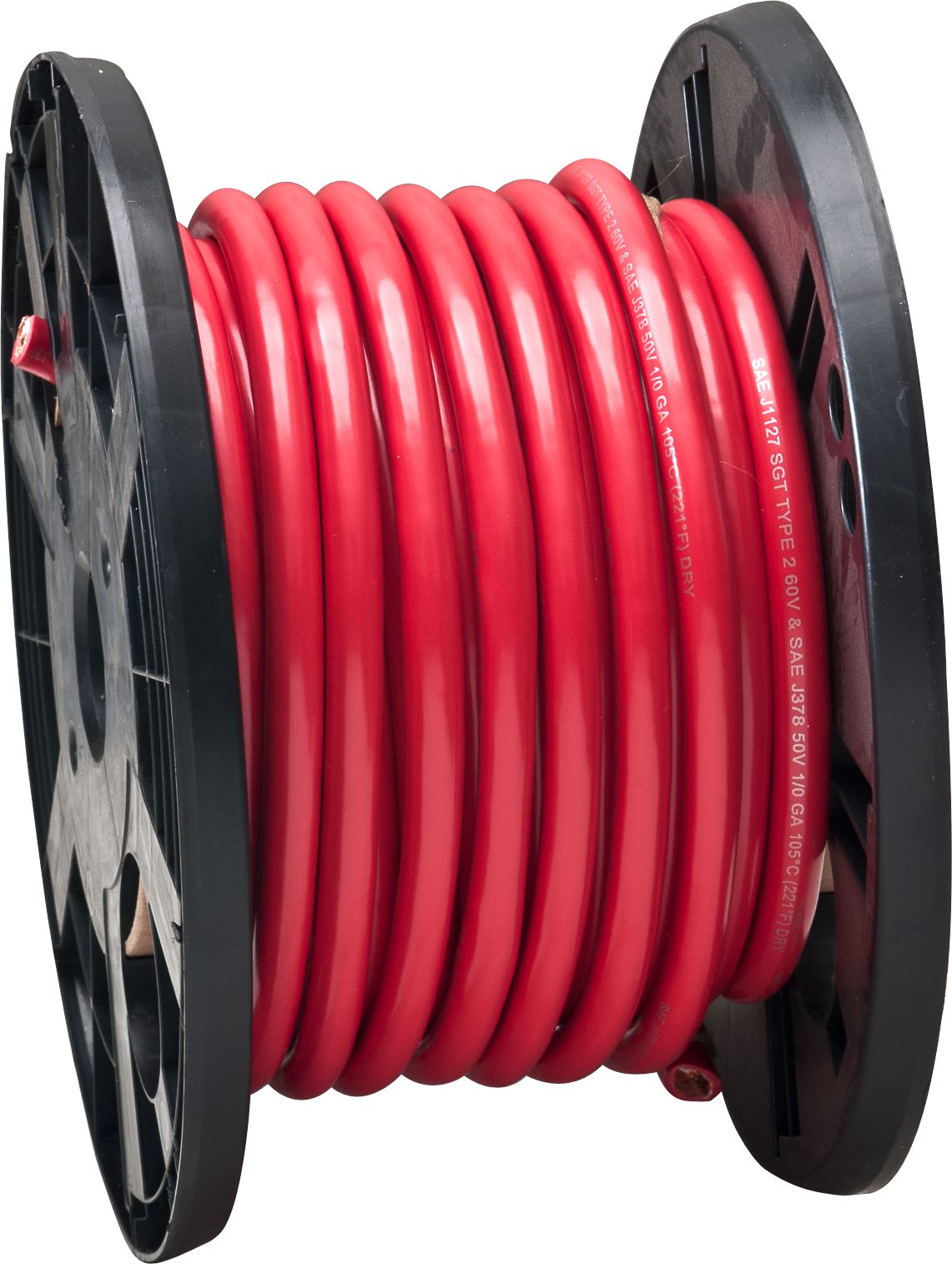

Battery Cable, 1/0 AWG, 50' Length, Red, 50 Volts, White-Crimp Color Code, PVC Insulated, Copper Conductor, Tru-Conduct
(Pack of
1)
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Flexible Battery Cable 2 AWG Red 50'
Couldn't load pickup availability
Flexible Battery Cable 2/0 AWG Black 25'
Couldn't load pickup availability
Battery Cable 4 AWG Black Gray-Crimp Code
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Cable Seal Gray 16-14 AWG 20A 12V 280 Series/WP
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Technical Specifications
| Item#: | 98410 |
|---|---|
| Cable Gauge | 1/0 |
| Color | Red |
| Volts | 50 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 140 °F |
| Length | 50 ft |
| Crimp Color Code | White |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 9/16 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 21.5 lb |
