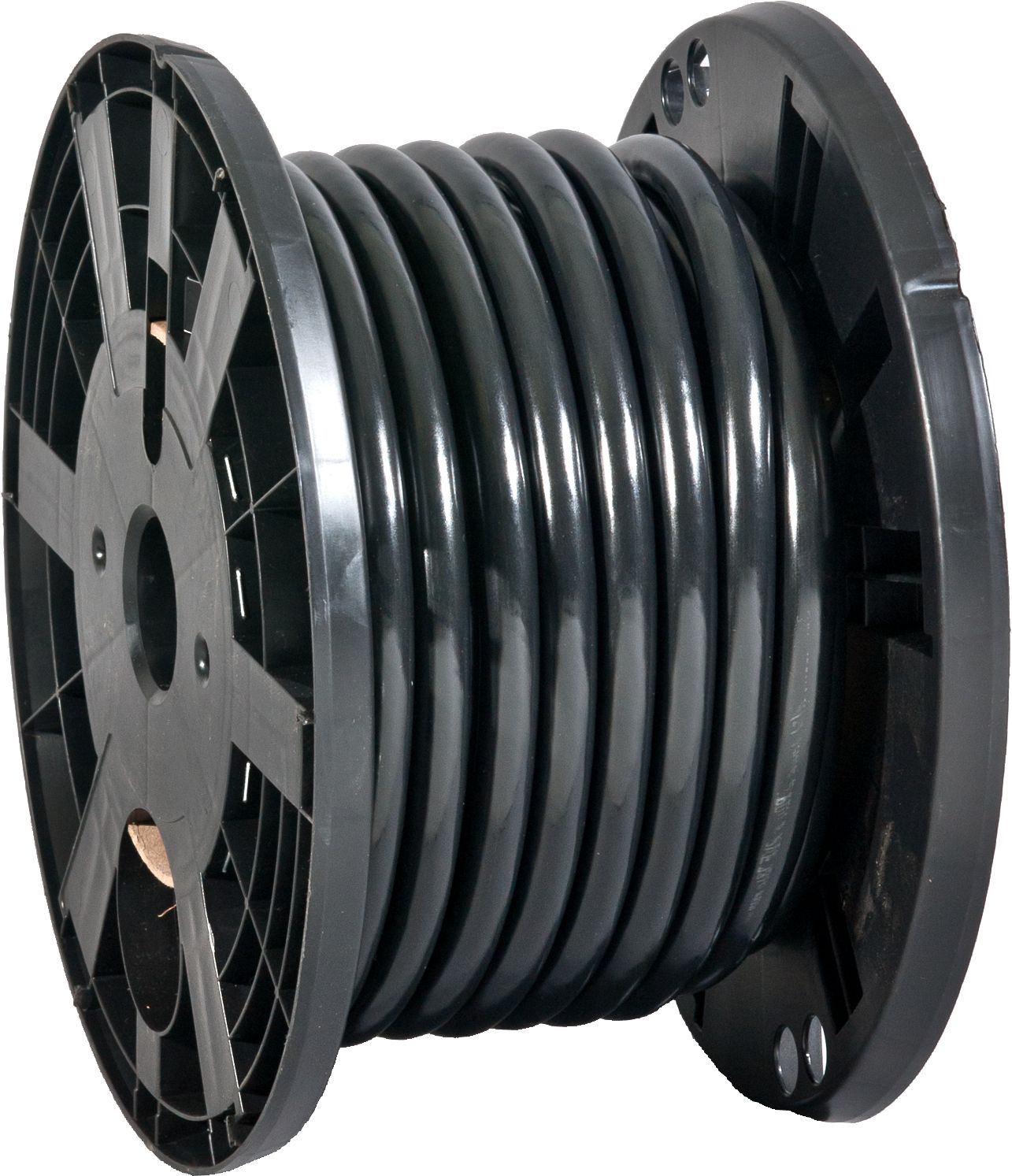

Battery Cable, 2/0 AWG, 50' Length, Black, 60 Volts, PVC Insulated, Orange-Crimp Color Code, Copper Conductor, Tru-Conduct
(Pack of
1)
SKU:9140 Item#: 9140
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +176°F (–40°C to +80°C)
• 60V maximum
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Battery Cable 6 AWG Black Blue-Crimp Code
Couldn't load pickup availability
Flexible Battery Cable 3/0 AWG Black 25'
Couldn't load pickup availability
Flexible Battery Cable 8 AWG Black 50'
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4 AWG Gray 1/4"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4 AWG Gray 5/16"
Couldn't load pickup availability
Connector Housing 20A 3-Wire Tower
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +176°F (–40°C to +80°C)
• 60V maximum
Technical Specifications
| Item#: | 9140 |
|---|---|
| Cable Gauge | 2/0 |
| Color | Black |
| Volts | 60 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 176 °F |
| Length | 50 ft |
| Crimp Color Code | Orange |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 5/8 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 26.0 lb |
