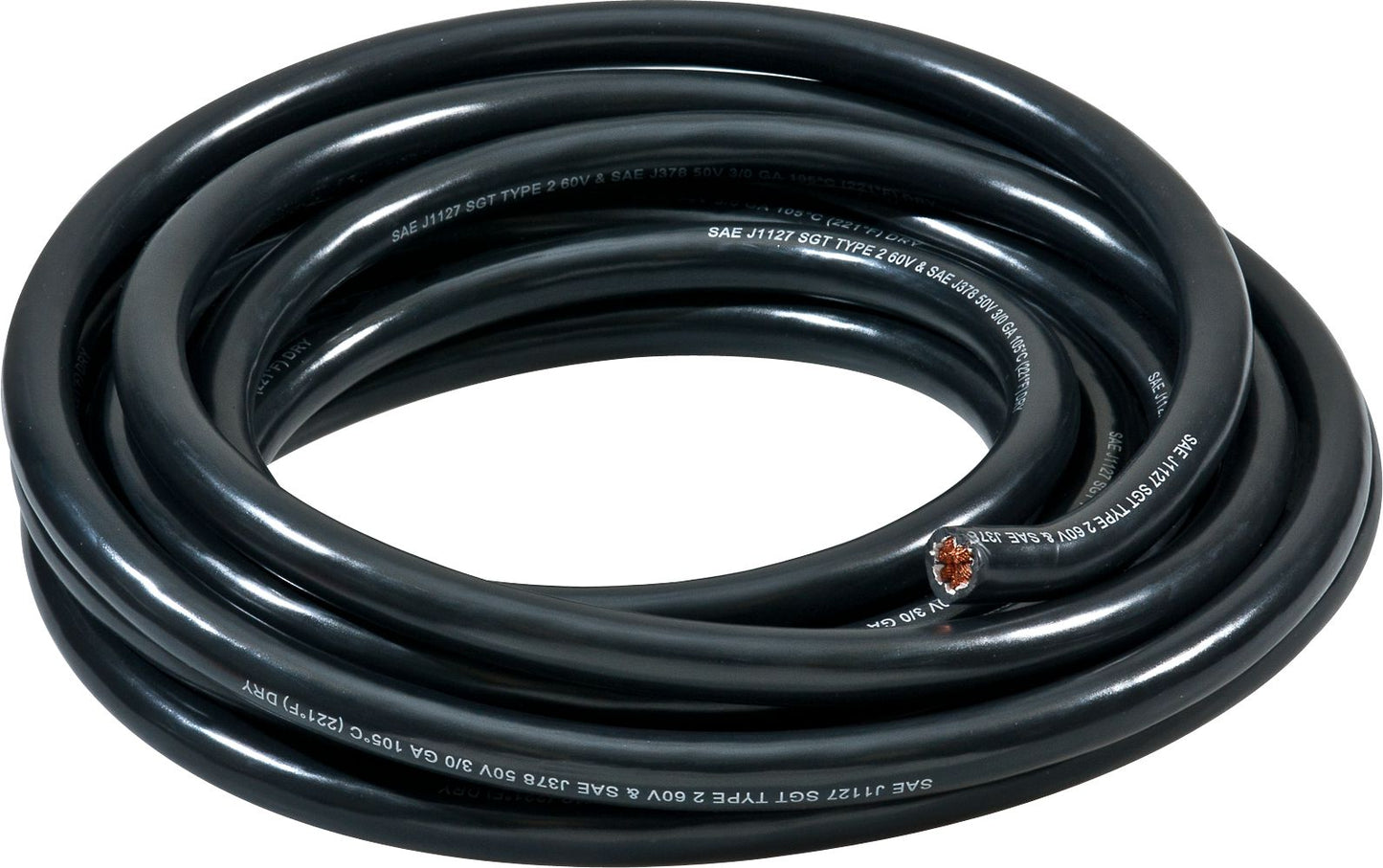

Battery Cable 3/0 AWG Black Purple-Crimp Code
(Pack of
1.0)
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together
Battery Cable 6 AWG Black Blue-Crimp Code
Couldn't load pickup availability
Battery Cable 4 AWG 50' Gray
Couldn't load pickup availability
Flexible Battery Cable 2 AWG Black 50'
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie 7.31" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Pin Terminal Contact Male 16-14 AWG
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 3/8"
Couldn't load pickup availability
Connector Housing 20A 3-Wire Tower
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Technical Specifications
| Item#: | 84801 |
|---|---|
| Cable Gauge | 3/0 |
| Color | Black |
| Volts | 50 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 140 °F |
| Length | 25 ft |
| Crimp Color Code | Purple |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 3/4 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 16.65 lb |
