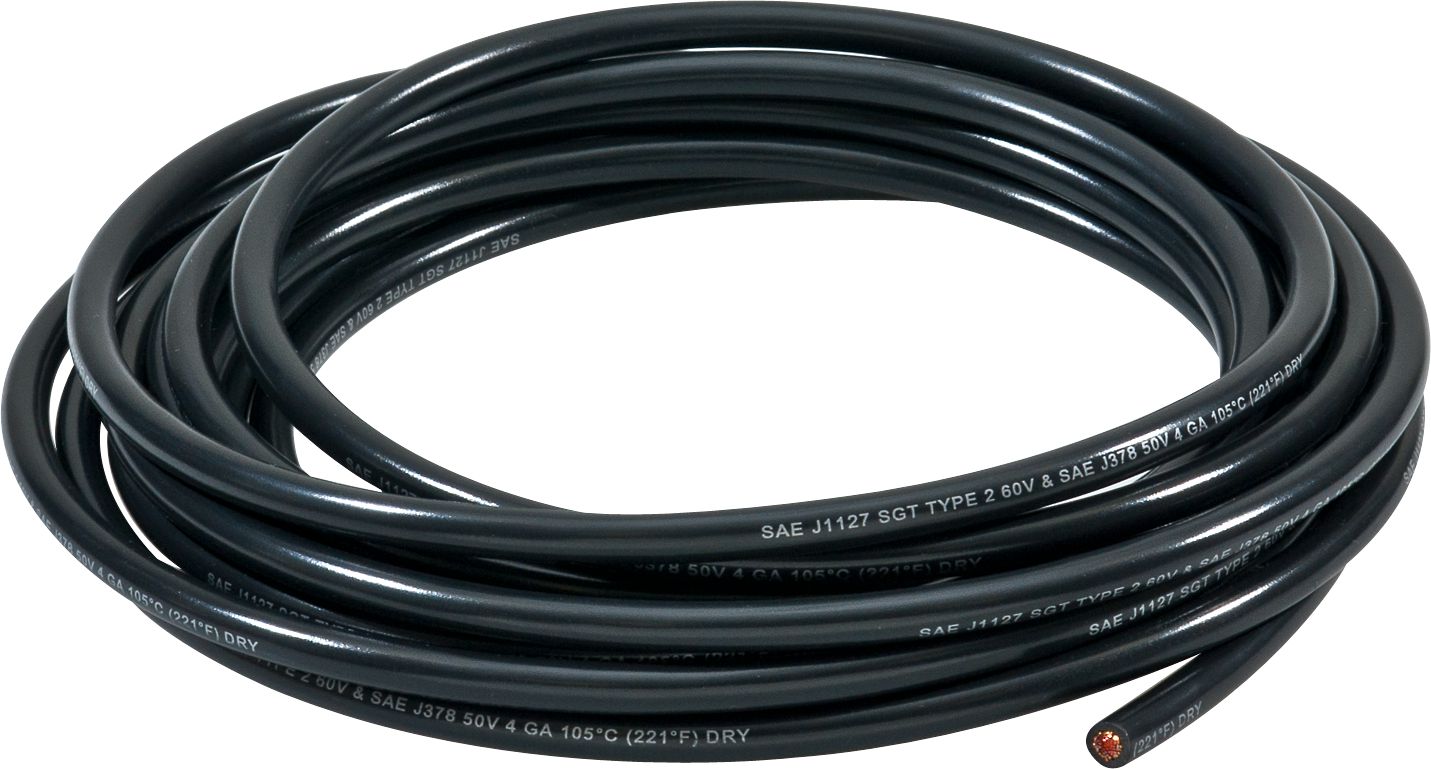

Battery Cable, 4 AWG, 25' Length, Black, 50 Volts, PVC Insulated, Gray-Crimp Color Code, Copper Conductor, Tru-Conduct
(Pack of
1)
• Stranded copper conductors are soft annealed for improved flexibility
• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 18-3
Frequently Bought Together

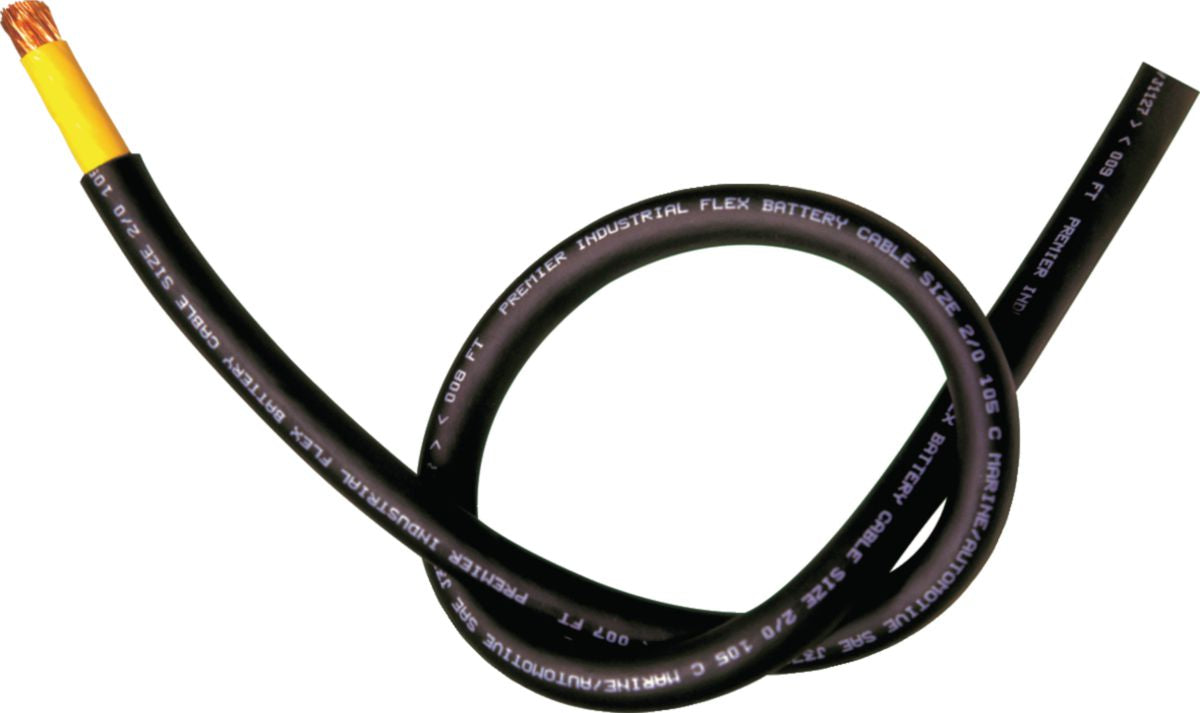

Flexible Battery Cable 1 AWG Red 25'
Couldn't load pickup availability
Flexible Battery Cable 8 AWG Black 50'
Couldn't load pickup availability
Battery Cable 6 AWG Black Blue-Crimp Code
Couldn't load pickup availability
Cable Tie 14.19" Black
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 8 to 1 AWG Black
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2/0 AWG Black 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 4 AWG Gray 1/4"
Couldn't load pickup availability
Connector Housing 20A 3-Wire Shroud
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Product Description
• Stranded copper conductors are soft annealed for improved flexibility• Tough polyvinyl chloride insulator resists abrasion, oil, grease and moisture, and is flame-retardant
• Color-coded layline indicates wire gauge
• Meets SAE Specification J1127 for automobiles, buses and trucks
• Temperature range: –40°F to +140°F (–40°C to +60°C)
• 50V maximum
Technical Specifications
| Item#: | 45857 |
|---|---|
| Cable Gauge | 4 |
| Color | Black |
| Volts | 50 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 140 °F |
| Length | 25 ft |
| Crimp Color Code | Gray |
| Specifications | SAE J1127 |
| Style | Tru-Conduct |
| Type | Battery Cable |
| O.D. | 3/8 " |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 4.5 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
