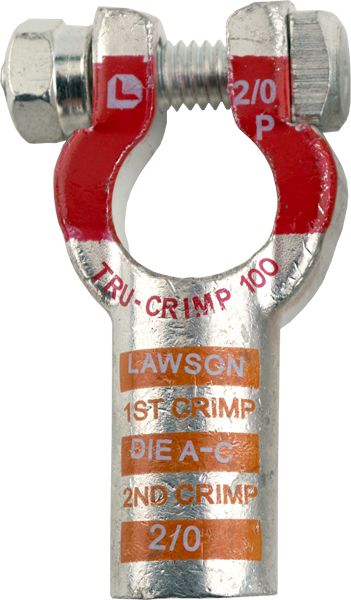

Battery Terminal 2/0 AWG Straight Barrel Positive
(Pack of
5.0)
Our highest grade battery terminals – maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Heavy-duty wall thickness
Higher yolk for greater post contact
Color-coded for easy size identification
Long barrel 2-crimp design
Tin-plated for protection
Color-coded and marked for polarity
Crimp locations marked for easy installation
Chamfered barrel
Positive Polarity
Negative Polarity
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 18-6
Frequently Bought Together
Battery Terminal 2/0 AWG Straight Barrel Negative
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 2/0 AWG Orange 3/8"
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 3/0 AWG Purple 3/8"
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
DT Series Receptacle 13A 12 Contacts
Couldn't load pickup availability
Socket Contact 18-16 AWG Size 20
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Positive
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Brown
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Blue
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Black
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Product Description
Our highest grade battery terminals – maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Heavy-duty wall thickness
Higher yolk for greater post contact
Color-coded for easy size identification
Long barrel 2-crimp design
Tin-plated for protection
Color-coded and marked for polarity
Crimp locations marked for easy installation
Chamfered barrel
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99917 |
|---|---|
| Style | Straight Barrel |
| Cable Gauge | 2/0 |
| Color | Orange |
| Polarity | Positive |
| Plating | Lead |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 0.9 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
