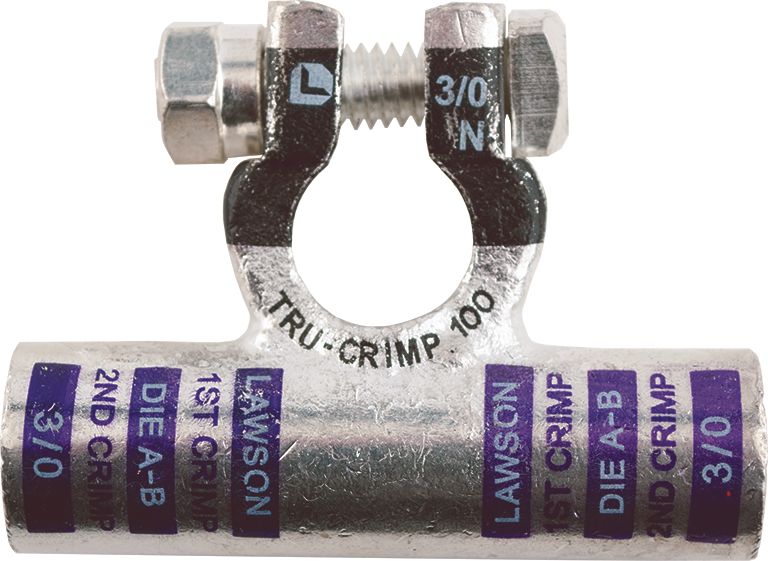

Post-Top Battery Terminal, 3/0 AWG, Flag, Purple, Negative Polarity, Copper, Tin Plated, Long Chamfered Barrel
(Pack of
5)
SKU:99928 Item#: 99928
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Couldn't load pickup availability
Catalog page#: 18-6
Frequently Bought Together
Heavy-Duty Battery Cable Lug 6 AWG Blue 5/16"
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 4 AWG Gray 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 8 AWG Red #10
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 1/4"
Couldn't load pickup availability
Pin Terminal Contact Male 20-18 AWG
Couldn't load pickup availability
Socket Terminal Contact 20-18 AWG
Couldn't load pickup availability
Straight Barrel Battery Terminal 2/0 AWG Positive
Couldn't load pickup availability
Cross Linked Primary Wire 10 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 12 AWG 100' Red
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Product Description
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99928 |
|---|---|
| Style | Flag |
| Cable Gauge | 3/0 AWG |
| Color | Purple |
| Polarity | Negative |
| Plating | Tinned |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 1.72 lb |
