Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Large Flange, M6-1, 0.7 to 3.8mm Grip, 13.5mm Hole
(Pack of
25)
SKU:1405628 Item#: 1405628
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

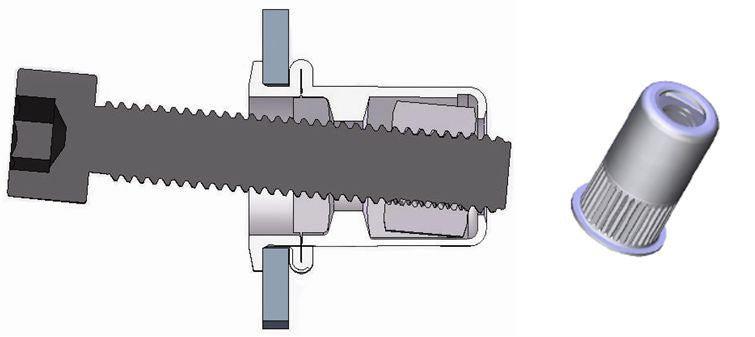

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 5/16-18
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head 3/8-16
Couldn't load pickup availability
Jacketed Parallel Primary Wire 14 AWG 2C 100'
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
Couldn't load pickup availability
Cross Linked Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405628 |
|---|---|
| Diameter | M6 |
| Grip Range | 0.7 - 3.8 mm |
| Length | 20.80 m |
| Thread Pitch | 1.0 mm |
| Hole Size | 13.5 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | M6-1.0 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
