Blind Rivet Nut Insert, Riv-Float Short, Steel, Zinc Clear Finish, Knurled, Large Flange, #10-32, 0.02 to 0.1" Grip, 0.433" Hole
(Pack of
5)
SKU:1406247 Item#: 1406247
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

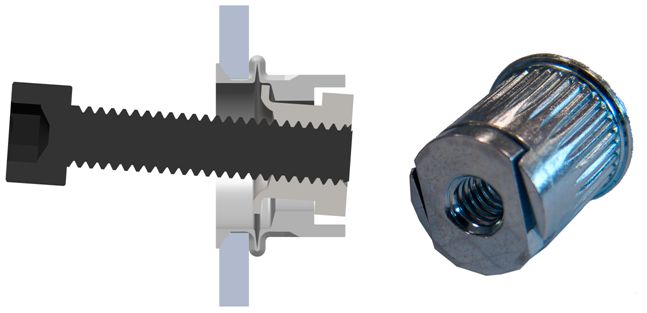

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float #8-32
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-24
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Red
Couldn't load pickup availability
Plastic Covered Primary Wire 16 AWG 100' Black
Couldn't load pickup availability
Plastic Covered Primary Wire 14 AWG 100' Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Diamond Grip II Threaded Insert 5/16-18
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1406247 |
|---|---|
| Diameter | #10 |
| Grip Range | .020 - .100 " |
| Length | 0.435 " |
| Thread Pitch | 32 |
| Hole Size | 0.433 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float Short |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-32 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
