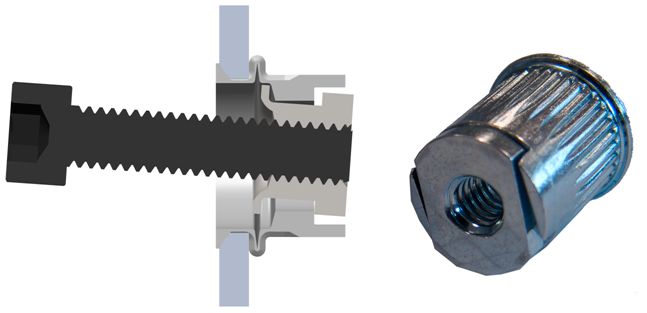

Blind Rivet Nut, RIV-FLOAT® Short, Large Flange Head, Knurled, Steel, Zinc Clear, M4-.7 Thread, 0.7 - 3.3 Grip
(Pack of
5)
SKU:1405849 Item#: 1405849
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405849 |
|---|---|
| Diameter | M4 |
| Grip Range | 0.7mm - 3.3 mm |
| Length | 18.28 mm |
| Thread Pitch | .7 mm |
| Hole Size | 10 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float Short |
| Material | Steel |
| Finish | Bright Zinc |
| Size | M4-.7 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
