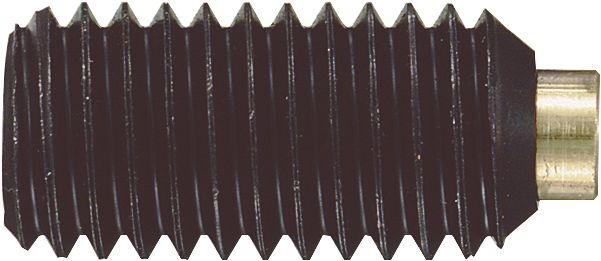

Brass Tip Socket Set Screw
(Pack of
10.0)
The use of a brass tip set screw eliminates the need to use two standard set screws at a 90° angle to each other. The soft brass tip indents to the curvature of the shaft and effectively locks it in place.
• Alloy steel heat-treated to Rc 28-34
• Locks collars, pulleys, bearings, cams, etc., to shafts
• Protects finished surfaces and threads
• Restricts shaft end play for better control
Frequently Bought Together
Product Description
The use of a brass tip set screw eliminates the need to use two standard set screws at a 90° angle to each other. The soft brass tip indents to the curvature of the shaft and effectively locks it in place.• Alloy steel heat-treated to Rc 28-34
• Locks collars, pulleys, bearings, cams, etc., to shafts
• Protects finished surfaces and threads
• Restricts shaft end play for better control
Technical Specifications
| Item#: | 60324 |
|---|---|
| Diameter | 5/16 " |
| Thread Pitch | 24 |
| Length | 1/2 " |
| Point | Brass |
| Type | Set Screw |
| Finish | Black Oxide |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Fine |
| Head Style | Socket Head |
| Key Size | 5/32 " |
| Protrusion Diameter | 3/16 " |
| Protrusion Length | 3/32 " |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
