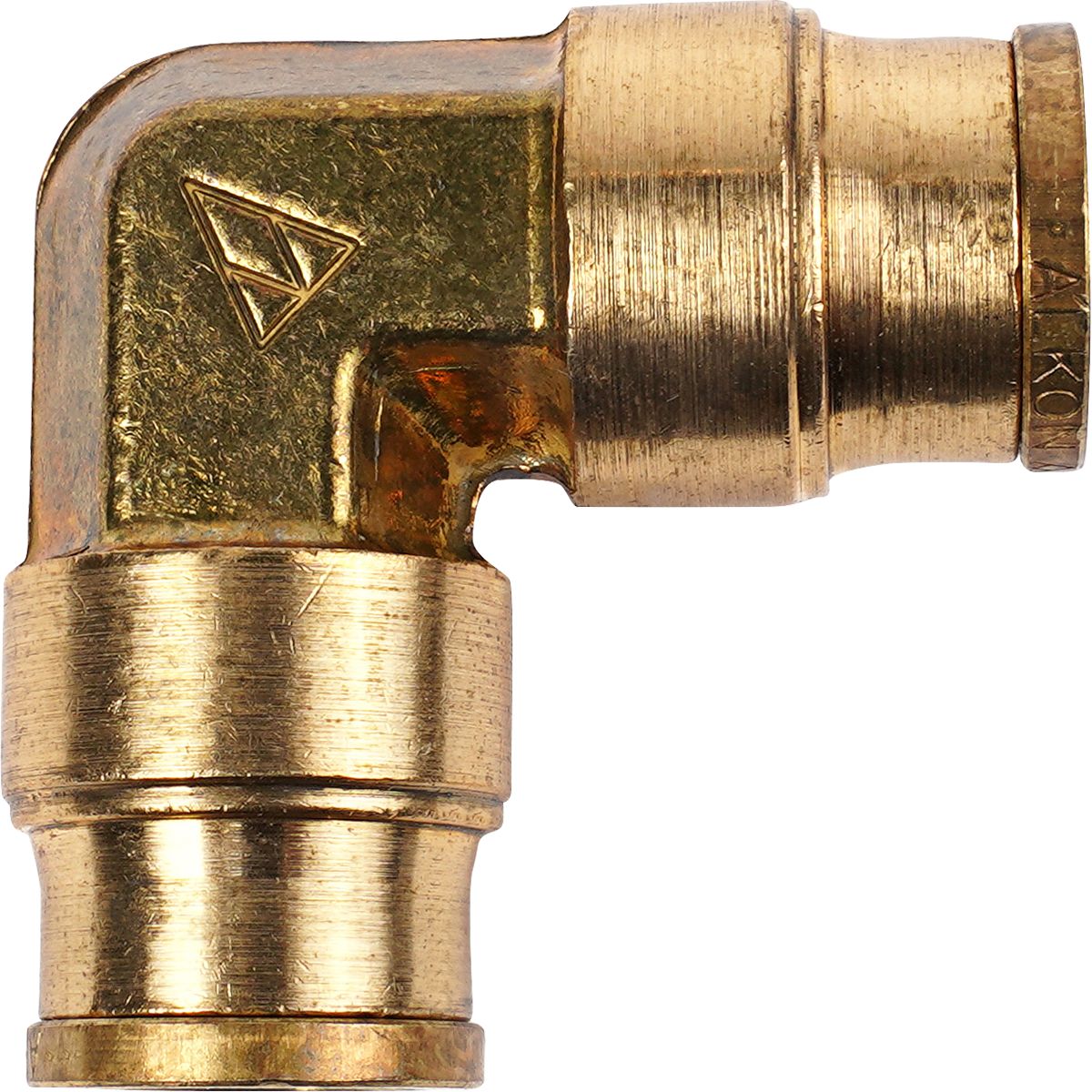

Union push-on connector 90 degree elbow 1/4 inch tube size
(Pack of
5)
SKU:DY41726540 Item#: DY41726540
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-38
Frequently Bought Together
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Street Elbow Brass 45° 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.Technical Specifications
| Item#: | DY41726540 |
|---|---|
| Style | Push-to-Connect |
| Configuration | Union Elbow |
| Tube Size | 1/4 " |
| Material | Brass |
| Working Pressure | Up To Maximum Working Pressure of Tubing Being Used |
| Temperature Range | -40 to +212 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.26 lb |
