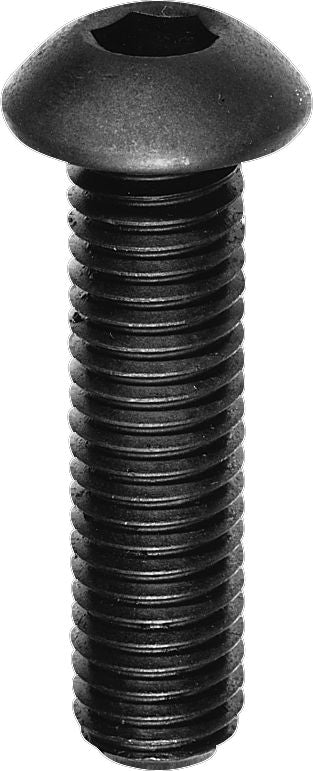

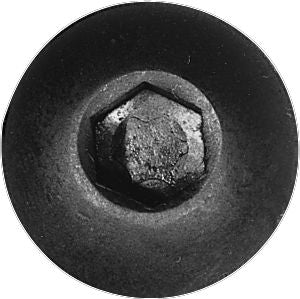

Button Head Socket Cap Screw Steel #3-48 x 3/8"
(Pack of 10.0)

Lawson Products

• High-strength, heat-treated high-alloy steel
• Cold-formed
• Black oxide finish
• Conforms to ANSI B18.3 and Federal FF-S-86 specifications
• For light fastening applications such as guards, hinges, cover plates, etc., where appearance is important
NOTE: Button heads should not be used in critical high-strength applications where socket head cap screws should be used.

Check Availability

Quantity

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog Page#: 4-8

Frequently Bought Together

Button Head Socket Cap Screw SS #6-32 x 3/8"

Button Head Socket Cap Screw Steel M5-0.8 x 14mm

Button Head Socket Cap Screw SS M6-1 x 25mm

SAE Flat Washer Thru-Hardened Steel 5/8"

Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Hex Nut Grade 8 Alloy Steel 1/2-13

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can

Set Screw Cup Point Steel 5/16-18 x 1/2"

Set Screw Cup Point Steel 1/4-20 x 1/2"

Flat Head Socket Cap Screw Steel M5-0.8 x 16mm

Product Description

• High-strength, heat-treated high-alloy steel
• Cold-formed
• Black oxide finish
• Conforms to ANSI B18.3 and Federal FF-S-86 specifications
• For light fastening applications such as guards, hinges, cover plates, etc., where appearance is important
NOTE: Button heads should not be used in critical high-strength applications where socket head cap screws should be used.

Technical Specifications

Item#:	55390
Diameter	#3
Thread Pitch	48
Length	3/8 "
Head Style	Button
Finish	Black Oxide
Material	Alloy Steel
Thread	Coarse
Tensile Strength	150,000 PSI
Type	Button Head Cap Screw
Drive	Hex
Key Size	1/16 "
Size	3-48X3/8 "
UNSPSC #:	31161518
TAA Compliant:	Yes
Weight:	0.03 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
