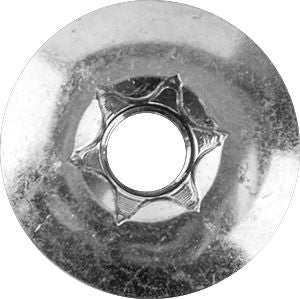

Camtainer® Nut 5/16-18 x 1/2"
(Pack of
100.0)
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.
• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• T-55 TORX® drive
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 3-65
Frequently Bought Together
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Camtainer® Nut 5/16-18 x 3/8"
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1-1/4"
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1"
Couldn't load pickup availability
Product Description
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• T-55 TORX® drive
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Technical Specifications
| Item#: | 1504412 |
|---|---|
| Type | Camtainer Nut |
| Diameter | 5/16 " |
| Thread Pitch | 18 tpi |
| Length | 1/2 " |
| Head Diameter | 1.000 " |
| Grade | 5.1 |
| UNSPSC #: | 31161627 |
| TAA Compliant: | No |
| Weight: | 2.9542 lb |
