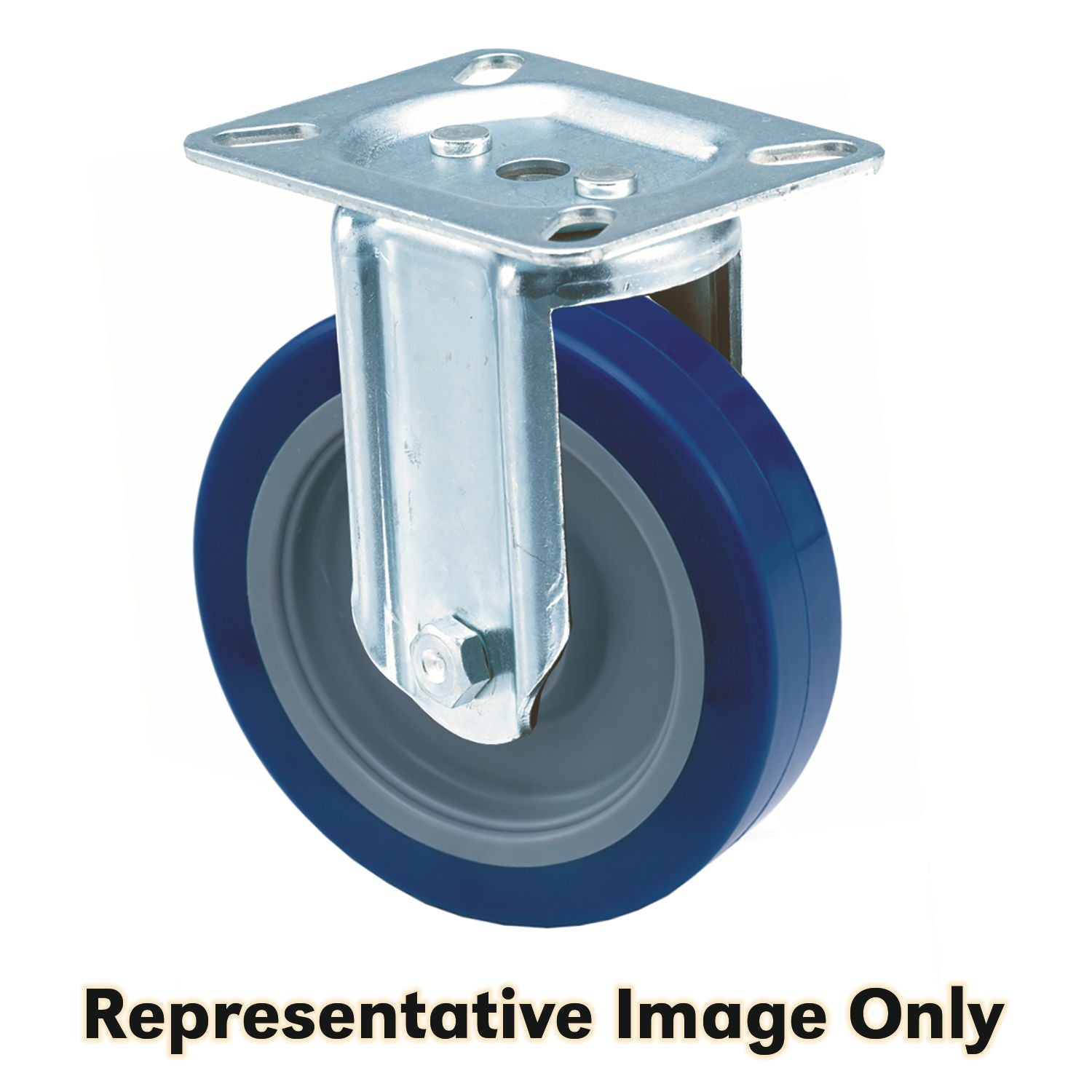

Caster, Rigid, Heavy-Duty, 5" Diameter, 2" Width, 6-1/2" Overall Height, 1000 Lb Safe Load, Phenolic Wheelic
(Pack of
1)
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Frequently Bought Together
Brake Kit For Light-Medium-Duty Swivel Casters
Couldn't load pickup availability
Caster Rigid Medium Duty 6 x 1-3/8" Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,500 lb WLL
Couldn't load pickup availability
Quick Link 3/16" Chain Size 616 Lb Safe Load
Couldn't load pickup availability
Spring Link, 5/16", 350 lb WLL, Zinc
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10855 |
|---|---|
| Type | Rigid |
| Style | Heavy Duty |
| Wheel Type | Phenolic |
| Wheel Diameter | 5 " |
| Wheel Width | 2 " |
| Load Rating | 1,000 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | No |
| Weight: | 4.8 lb |
