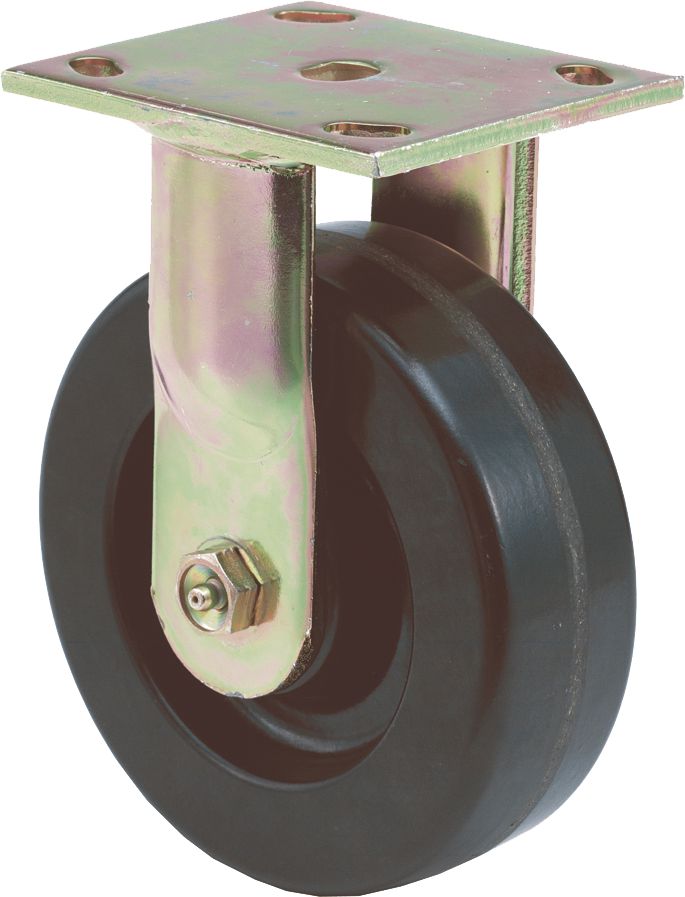

Caster, Rigid, Heavy-Duty, 6" Diameter, 2" Width, 7-1/2" Overall Height, 1200 Lb Safe Load, Phenolic Wheelic
(Pack of
1)
SKU:10856 Item#: 10856
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-58
Frequently Bought Together
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Medium Duty 5 x 1-3/8" Wheel
Couldn't load pickup availability

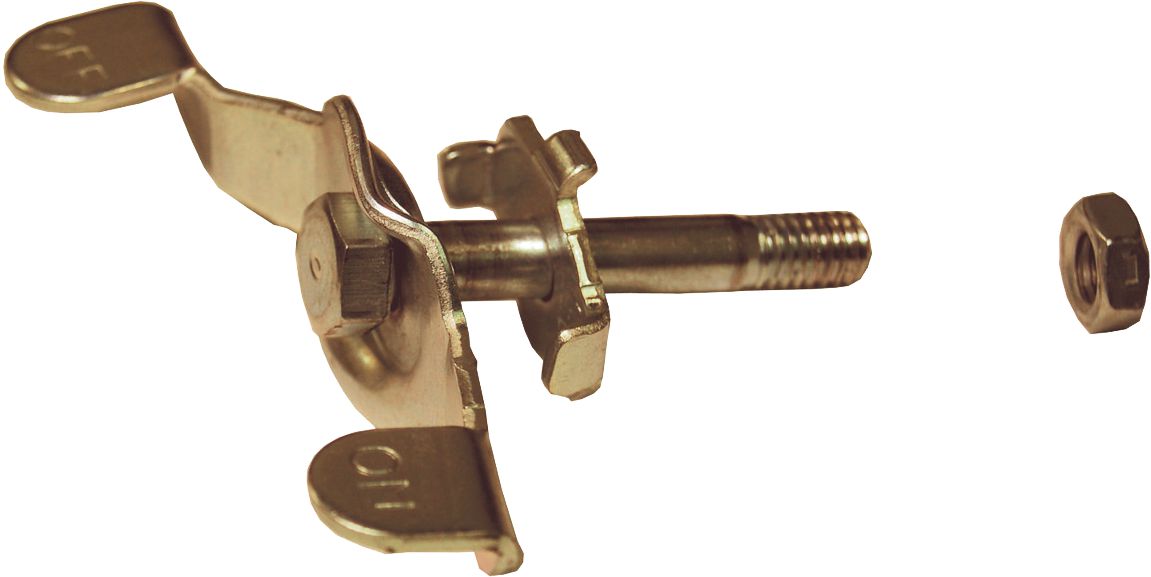

Brake Kit For Light-Medium-Duty Swivel Casters
Couldn't load pickup availability
Wire Rope Sleeve, 1/8", Aluminum
Couldn't load pickup availability
Quick Link 3/8" Chain Size 2220 Lb Safe Load
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Medium Duty 5 x 1-3/8" Wheel
Couldn't load pickup availability
Caster Rigid Medium Duty 6 x 1-3/8" Wheel
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Product Description
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10856 |
|---|---|
| Type | Rigid |
| Style | Heavy Duty |
| Wheel Type | Phenolic |
| Wheel Diameter | 6 " |
| Wheel Width | 2 " |
| Load Rating | 1,200 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 6.0 lb |
