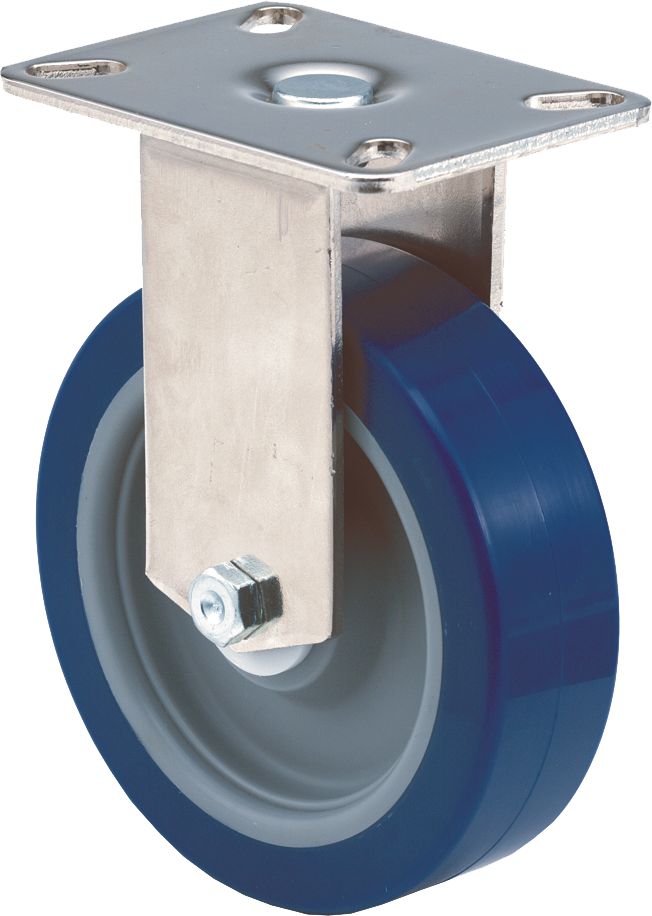

Caster, Rigid, Medium-Duty, Institutional, 4" Diameter, 1-1/2" Width, 5-3/8" Overall Height, 375 Lb Safe Load,Polyurethane Wheel
(Pack of
1)
SKU:10822 Item#: 10822
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Product Description
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10822 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 4 " |
| Wheel Width | 1-1/2 " |
| Overall Height | 5-3/8 " |
| Load Rating | 375 lb |
| Top Plate Overall Size | 3-1/8 x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 to 2-3/8 x 3-3/8 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Nickel Plated |
| Specifications | NSF Certified |
| UNSPSC #: | 31162701 |
| TAA Compliant: | No |
| Weight: | 1.75 lb |
