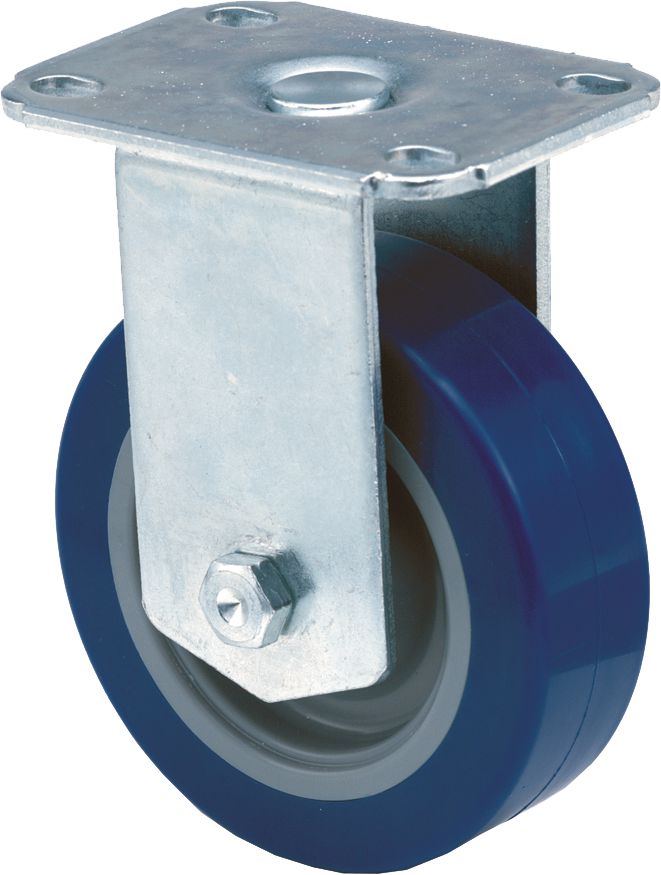

Caster, Rigid, Light-Medium Dty, Institutional, 4" Dia., 1-1/4" Width, 5-1/8" Overall Height, 275 Lb Safe Load, Polyurethane Wheel
(Pack of
1)
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Frequently Bought Together
Caster Rigid Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Lite-Med Duty 3-1/2 x 1-1/4" Wheel
Couldn't load pickup availability
Caster Swivel Lite-Medium Duty 4 x 1-1/4" Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 50
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 9,000 lb WLL
Couldn't load pickup availability
Caster Swivel Lite-Medium Duty 4 x 1-1/4" Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Alu-Master 8-Way Torpedo Level
Couldn't load pickup availability
Product Description
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10808 |
|---|---|
| Type | Rigid |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 4 " |
| Wheel Width | 1-1/4 " |
| Load Rating | 275 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 2-5/8 to 3 " |
| Top Plate Hole Diameter | 11/32 x 1/2 slots " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.84 lb |
