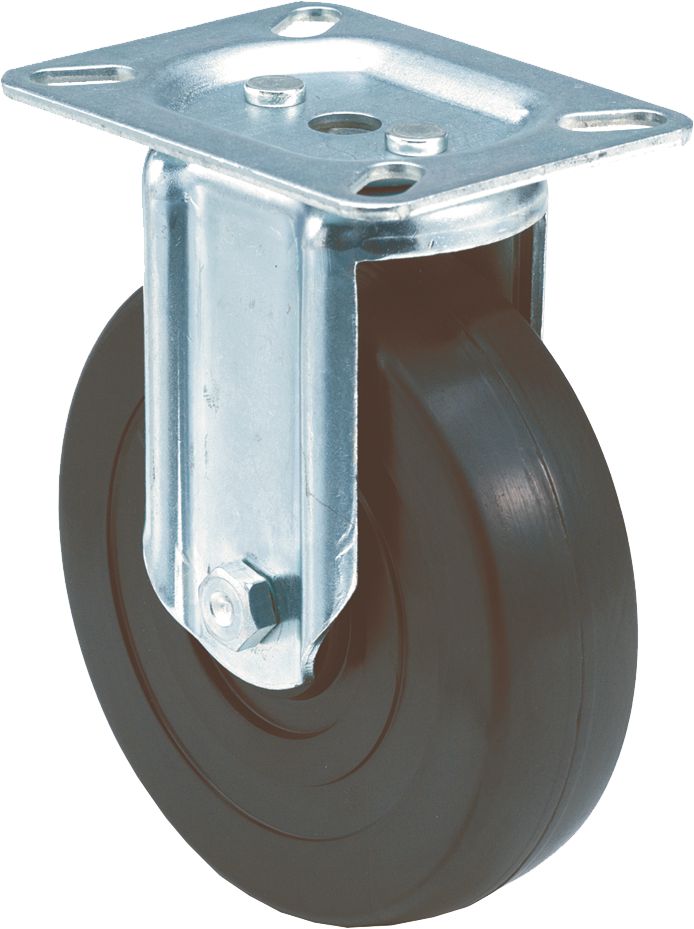

Caster, Rigid, Medium Duty 5" Diameter, 1-3/8" Width, 6-1/16" Overall Height, 240 Lb Safe Load, Soft Rubber Wheel
(Pack of
1)
Soft Rubber_x000D_This all-rubber wheel has a soft rubber tread integrally molded and bonded to a hard rubber core. It provides a cushioned ride and quiet operation. Tread hardness: 70 to 85 Shore A.
• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 3/8" diameter nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include medium-duty industrial, office and retail carts, dollies, stands, hampers, cabinets, racks and other mobile equipment
Frequently Bought Together
Caster Rigid Lite-Medium Duty 4 x 1-1/4" Wheel
Couldn't load pickup availability

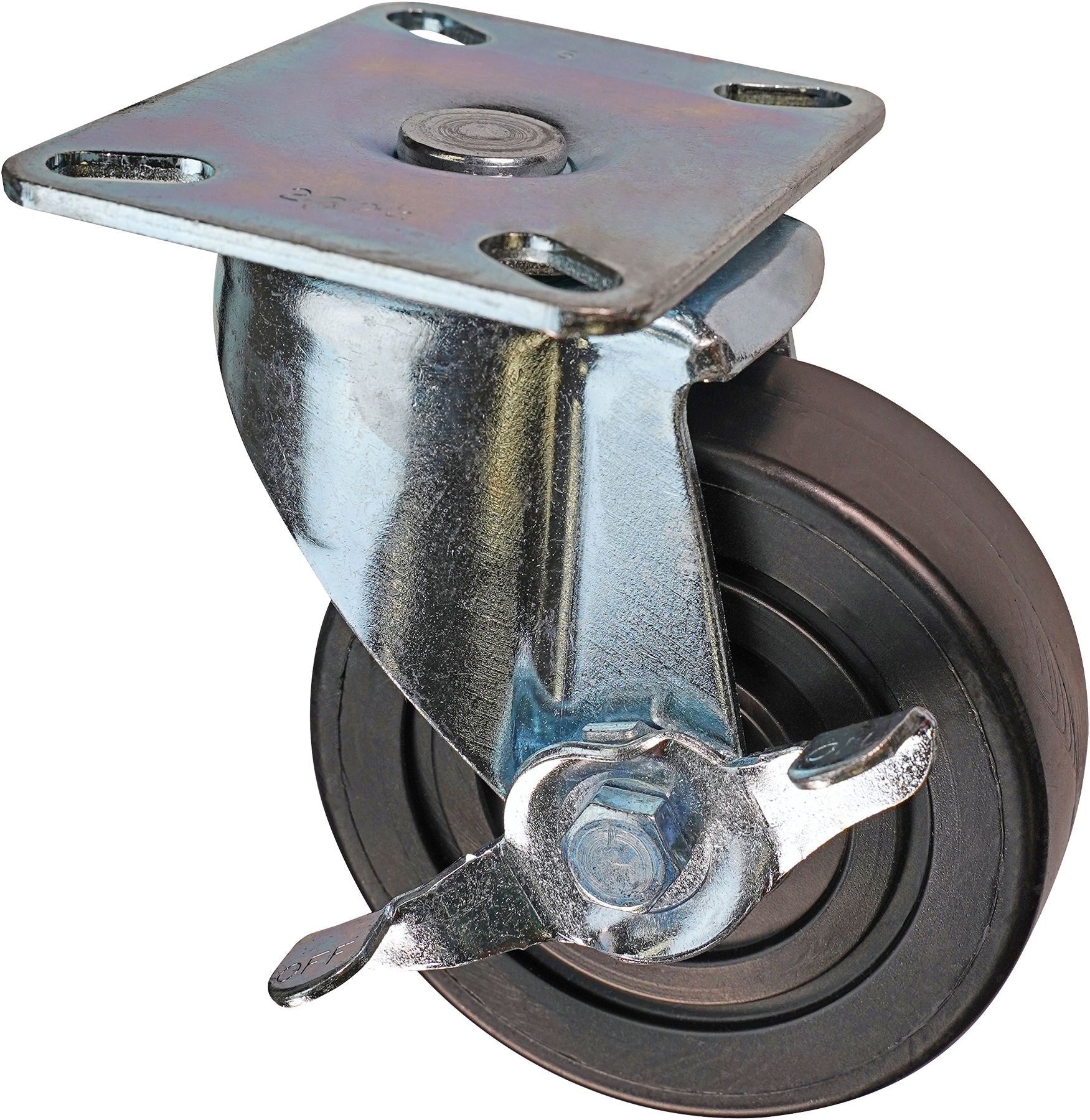

Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability

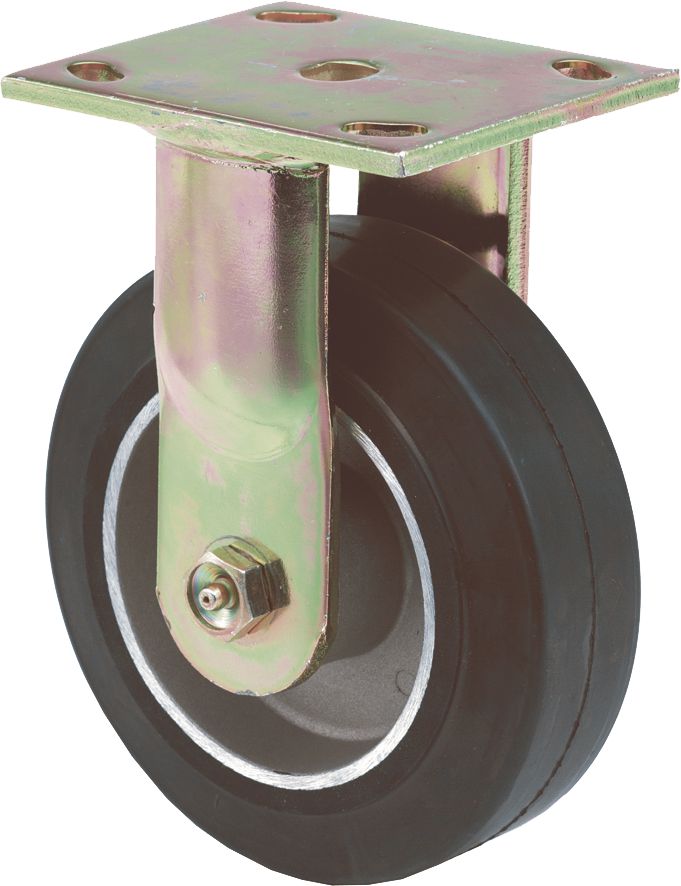

Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 13,000 lb WLL
Couldn't load pickup availability
Tuflex Roundsling, Polyester/Nylon, Yellow, 4' Length
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 8 x 2" Wheel
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Product Description
Soft Rubber_x000D_This all-rubber wheel has a soft rubber tread integrally molded and bonded to a hard rubber core. It provides a cushioned ride and quiet operation. Tread hardness: 70 to 85 Shore A.• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 3/8" diameter nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include medium-duty industrial, office and retail carts, dollies, stands, hampers, cabinets, racks and other mobile equipment
Technical Specifications
| Item#: | 10796 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Soft Rubber |
| Wheel Diameter | 5 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 240 lb |
| Top Plate Overall Size | 3-1/8 x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 to 2-3/8 x 3-3/8 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 3.11 lb |
