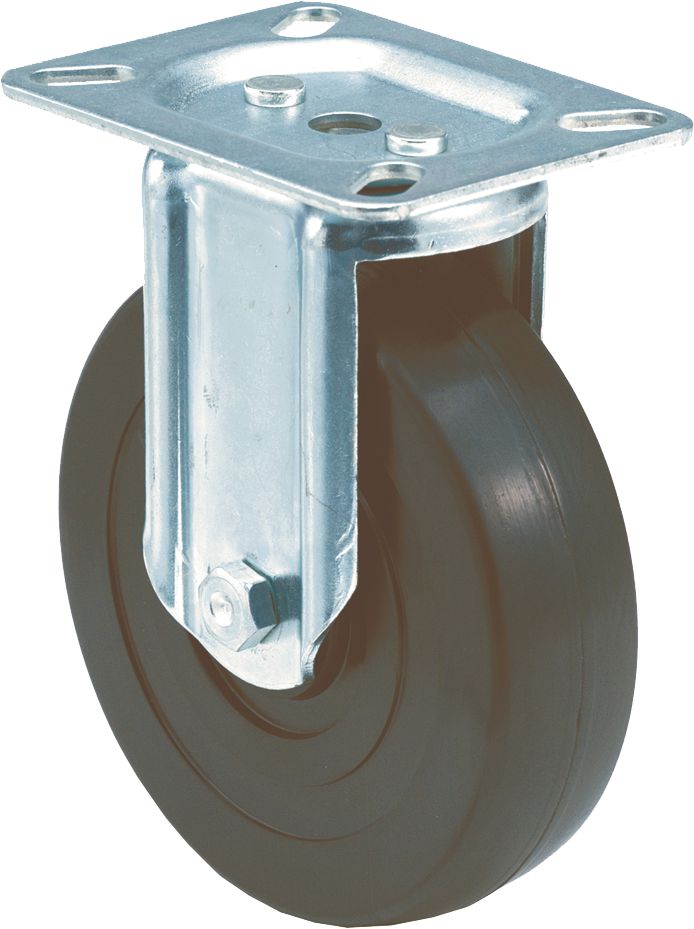

Caster, Rigid, Medium Duty 6" Diameter, 1-3/8" Width, 7-1/16" Overall Height, 400 Lb Safe Load, Polypropylene Wheel
(Pack of
1)
SKU:10802 Item#: 10802
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 3/8" diameter nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include medium-duty industrial, office and retail carts, dollies, stands, hampers, cabinets, racks and other mobile equipment
Frequently Bought Together
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
2" X 10' Quick Trac Retractable Ratcheting Tie Down Black 1100 Lbs
Couldn't load pickup availability
Quick Link 5/16" Chain Size 1540 Lb Safe Load
Couldn't load pickup availability
Wire Rope Sleeve, 3/32", Copper, Zinc Plated
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 3/8" diameter nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include medium-duty industrial, office and retail carts, dollies, stands, hampers, cabinets, racks and other mobile equipment
Technical Specifications
| Item#: | 10802 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 6 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 400 lb |
| Top Plate Overall Size | 3-1/8 x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 to 2-3/8 x 3-3/8 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.68 lb |
