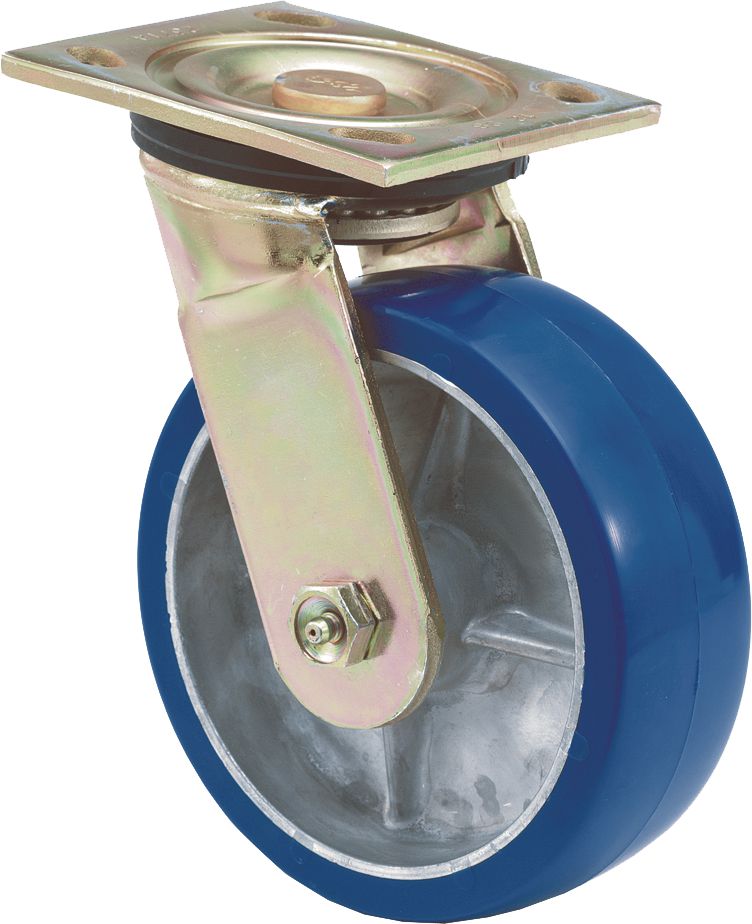

Caster, Swivel, Heavy-Duty, 6" Diameter, 2" Width, 7-1/2" Overall Lengh, 1200 Lb Safe Load, Mold-On Polyureth Wheel
(Pack of
1)
Mold-On PolyurethaneThis wheel has a polyurethane tread permanently molded and mechanically locked to an aluminum hub. It provides easy rolling, high load capacity, good floor protection and long service life. Sold with a roller bearing. Tread hardness: 55 Shore D.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on polyurethane wheels are molded to an aluminum hub
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-58
Frequently Bought Together
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
AkroBin® Divider for 30230,30235, 30255
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 19" Long
Couldn't load pickup availability
Screw Pin Anchor Shackle, 3/4", 9,500 lb WLL
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Product Description
Mold-On PolyurethaneThis wheel has a polyurethane tread permanently molded and mechanically locked to an aluminum hub. It provides easy rolling, high load capacity, good floor protection and long service life. Sold with a roller bearing. Tread hardness: 55 Shore D.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Mold-on polyurethane wheels are molded to an aluminum hub
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10844 |
|---|---|
| Type | Swivel |
| Style | Heavy Duty |
| Wheel Type | Mold-on Polyurethane |
| Wheel Diameter | 6 " |
| Wheel Width | 2 " |
| Load Rating | 1,200 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | No |
| Weight: | 7.0 lb |
