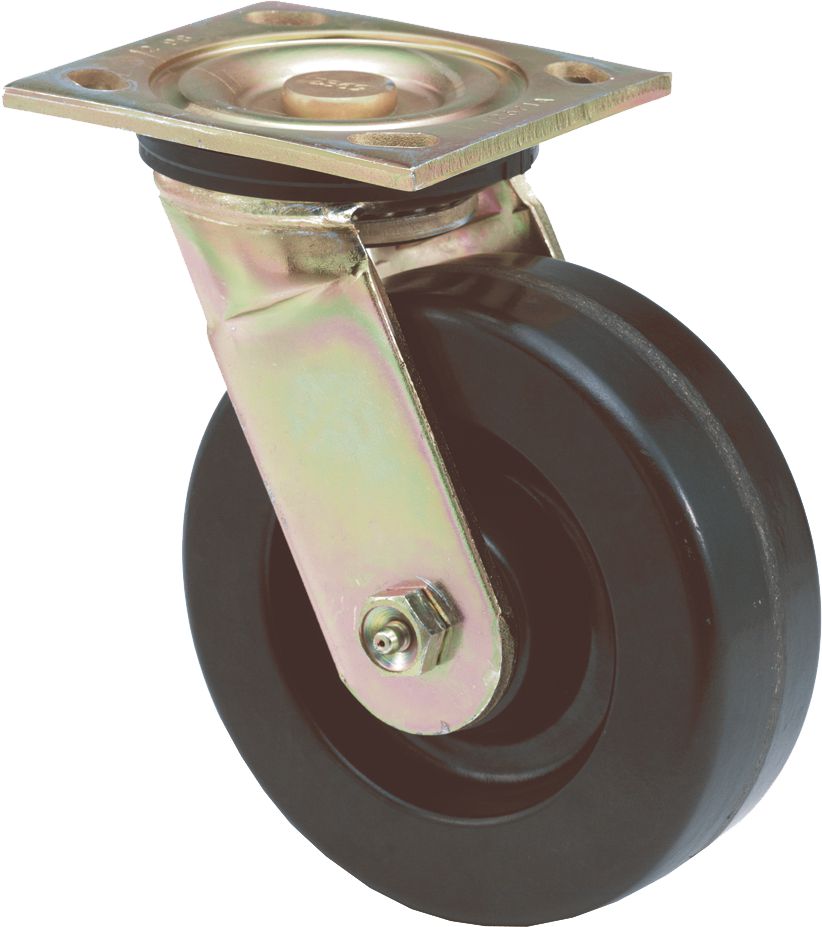

Caster, Swivel, Heavy-Duty, 6" Diameter, 2" Width, 7-1/2" Overall Lengh, 1200 Lb Safe Load, Phenolic Wheel
(Pack of
1)
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.
• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-58
Frequently Bought Together
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL
Couldn't load pickup availability
Web Tiedown, with Ratchet, Black, 12' Length
Couldn't load pickup availability
Wire Rope Sleeve, 1/16", Copper, Zinc Plated
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Product Description
Phenolic_x000D_Generally considered to be the easiest rolling wheel, this wheel is molded of phenolic resin that is reinforced with fibrous material, generally canvas. It features a high load capacity and provides better floor protection than semi-steel wheels. Sold with a roller bearing. Tread hardness: 102 Shore E.• Finish is yellow zinc chromate – twice as corrosion-resistant as clear zinc
• Roller wheel bearings
• Upper raceway grease seal retains lubricant and excludes contaminants
• Grease zerk fitting in upper raceway and axle for easy maintenance
• 1/2" dia. nut and bolt grease fitting axle
• Swivel caster has durable, heat-treated, factory lubricated, double ball raceways for high performance
Top Plate Dimensions
Overall Size: 4" x 4-1/2"
Hole Spacing: 2-5/8" x 3-5/8" to 3" x 3"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 3/8"
• Applications include trucks and hoppers, carts and racks, dollies and other mobile equipment
Technical Specifications
| Item#: | 10853 |
|---|---|
| Type | Swivel |
| Style | Heavy Duty |
| Wheel Type | Phenolic |
| Wheel Diameter | 6 " |
| Wheel Width | 2 " |
| Load Rating | 1,200 lb |
| Top Plate Overall Size | 4 x 4-1/2 " |
| Top Plate Bolt Diameter | 3/8 " |
| Top Plate Hole Spacing | 2-5/8 x 3-5/8 to 3 x 3 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Yellow Zinc Chromate |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 7.0 lb |
