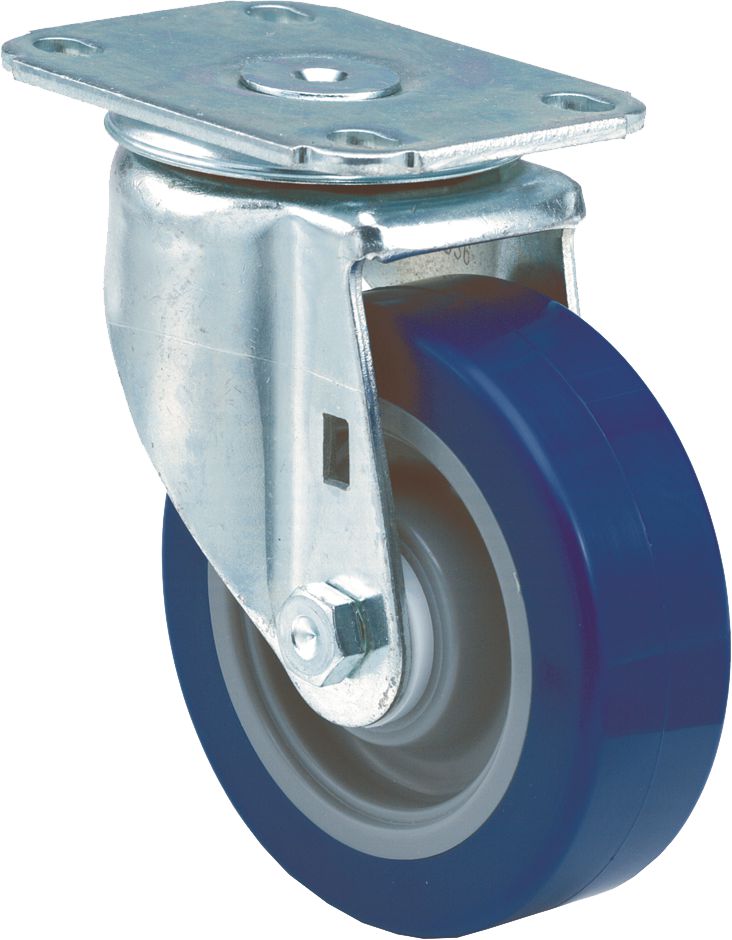

Caster, Swivel, Light-Medium Duty, Institutional, 3-1/2" Diameter, 1-1/4" Width, 4-5/8" Overall Height, 250 Lb Safe Load, Polyuret
(Pack of
1)
SKU:10804 Item#: 10804
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover standard on all swivel casters
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Frequently Bought Together
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
MityLiteâ„¢ 1910 LED Flashlight 1x AAA 3.6" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Product Description
PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover standard on all swivel casters
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10804 |
|---|---|
| Type | Swivel |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 3-1/2 " |
| Wheel Width | 1-1/4 " |
| Overall Height | 4-5/8 " |
| Load Rating | 250 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 2-5/8 to 3 " |
| Top Plate Hole Diameter | 11/32 x 1/2 slots " |
| Finish | Zinc Plated |
| Specifications | NSF Certified |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.95 lb |
