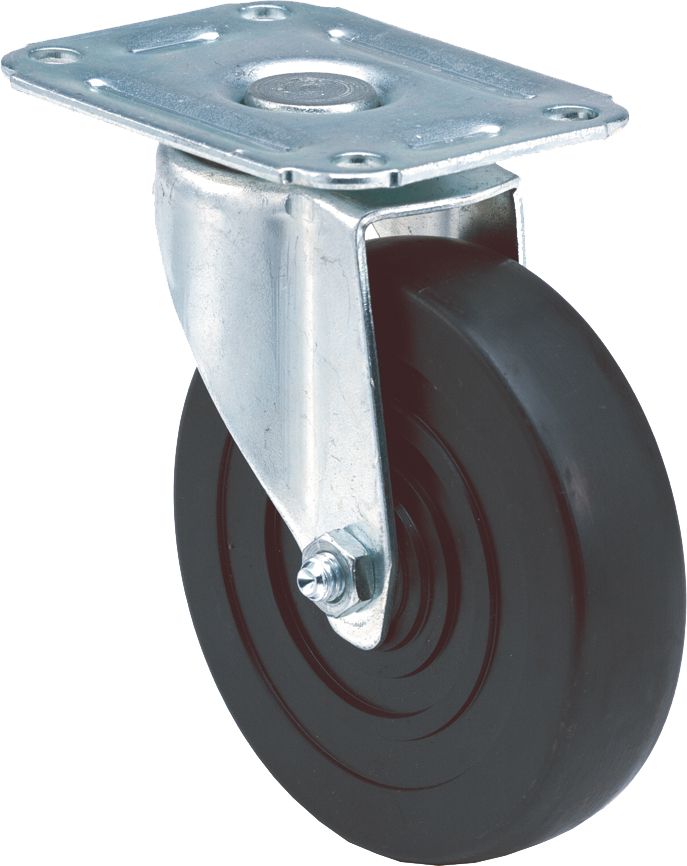

Caster, Swivel, Light-Medium Duty, 4" Diameter, 1-1/4" Width, 4-11/16" Overall Length, 255 Safe Load, Polypropylene Wheel
(Pack of
1)
SKU:10787 Item#: 10787
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 5/16" dia. nut and bolt axle
• Durable, heat-treated, factory lubricated double ball raceways for high performance
• Optional brake kit available
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Frequently Bought Together
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.• Corrosion-resistant zinc plating
• Self-lubricating wheel bearings
• 5/16" dia. nut and bolt axle
• Durable, heat-treated, factory lubricated double ball raceways for high performance
• Optional brake kit available
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
• Applications include light- to medium-duty industrial, office and retail carts, dollies, cabinets, racks and other mobile equipment
Technical Specifications
| Item#: | 10787 |
|---|---|
| Type | Swivel |
| Style | Light-Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 4 " |
| Wheel Width | 1-1/4 " |
| Overall Height | 4-11/16 " |
| Load Rating | 255 lb |
| Top Plate Overall Size | 2-3/4 x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.1 lb |
