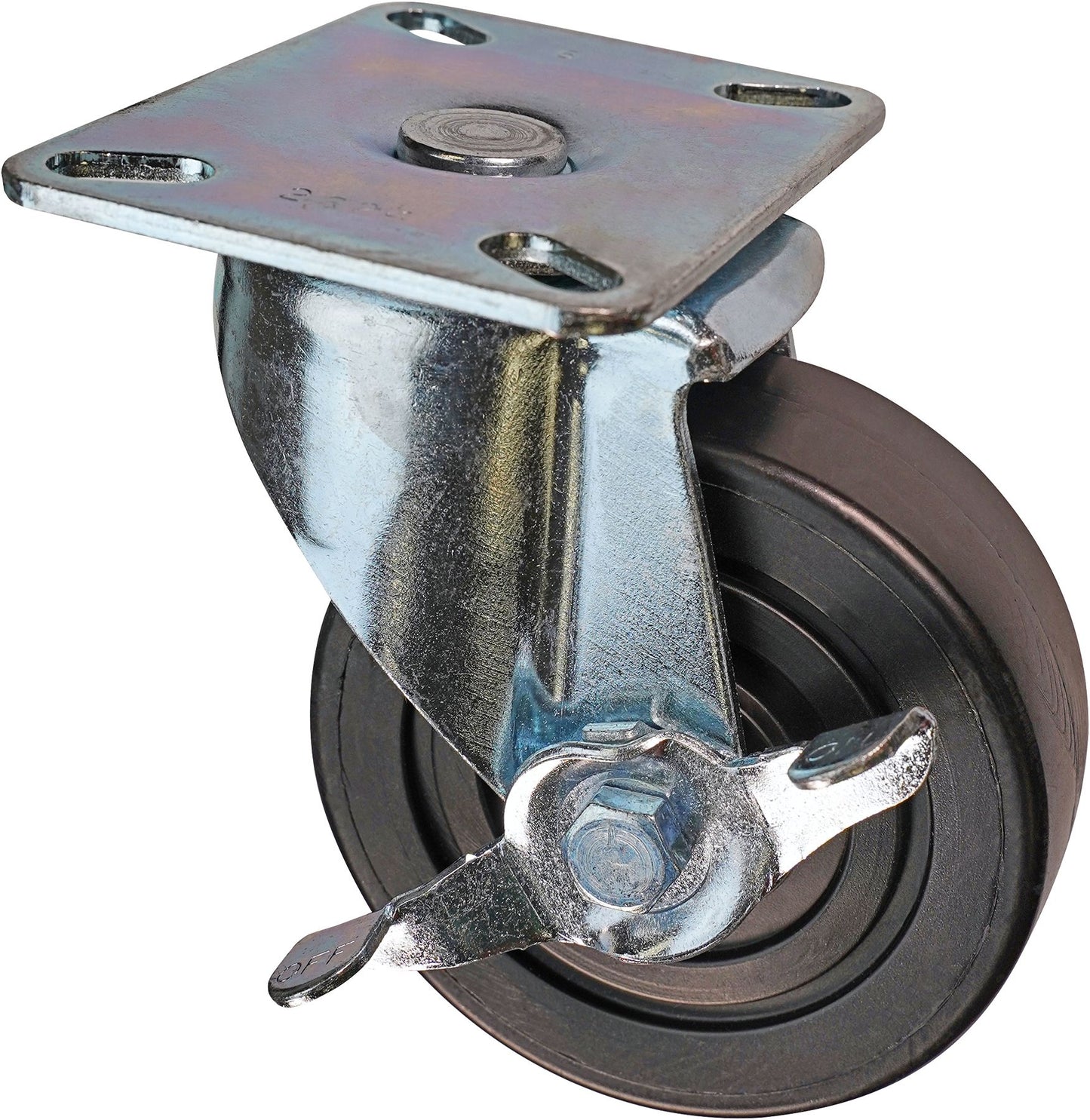

Caster, Swivel with Brake, Polypropylene Wheel, 4" Diameter, 1-3/8" Wheel Width, 375 lb Load Rating
(Pack of
1)
SKU:1588626 Item#: 1588626
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-57
Frequently Bought Together
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Clevis Slip Hook, Grade 70, 3/8", 6,600 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/16", 2,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 5/8", 6,500 lb WLL
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Caster Rigid Polypropylene Wheel
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588626 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 4 " |
| Wheel Width | 1-3/8 " |
| Overall Height | 5-1/16 " |
| Load Rating | 375 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.275 lb |
