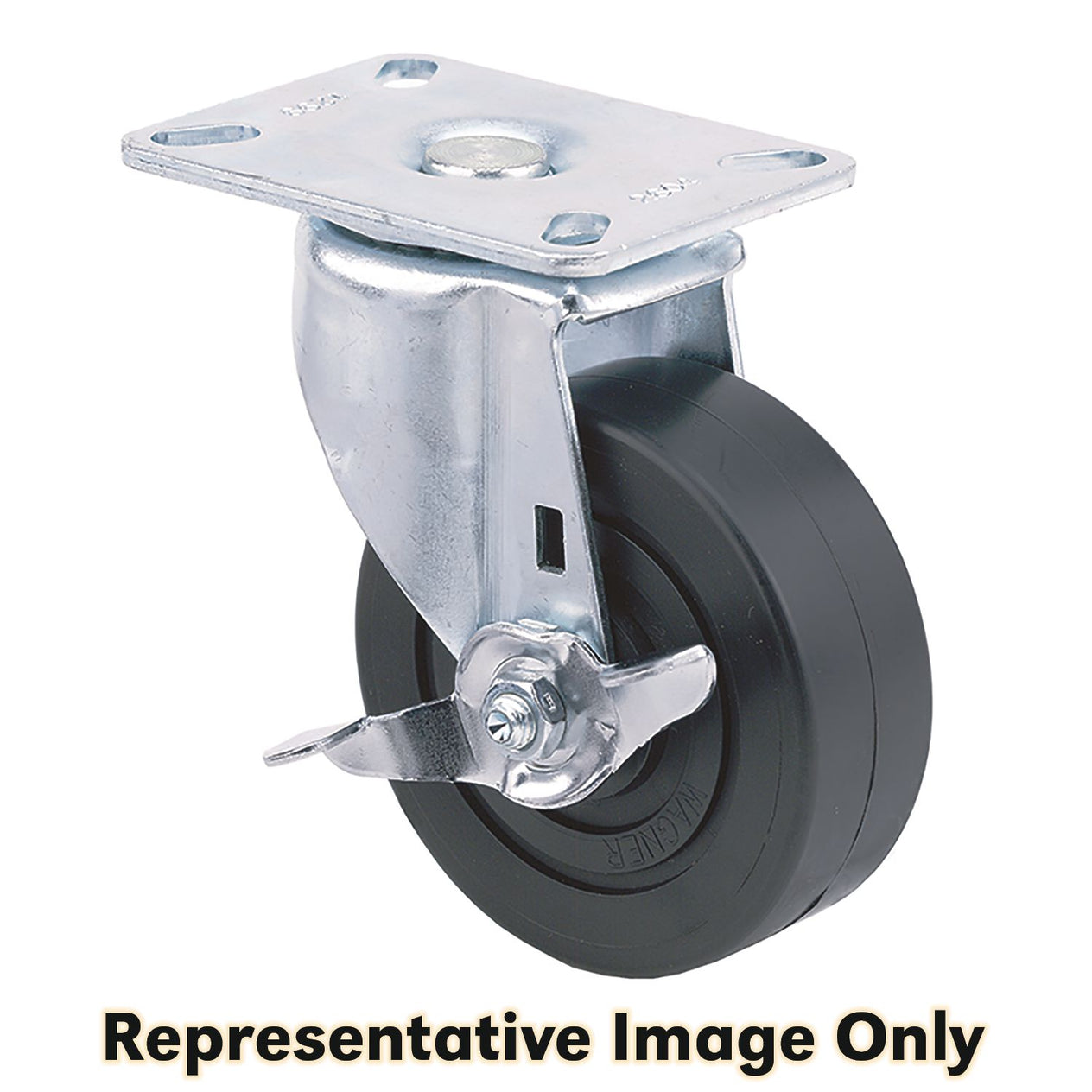

Caster, Swivel with Brake, Polypropylene Wheel, 5" Diameter, 1-3/8" Wheel Width, 400 lb Load Rating
(Pack of
1)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 15-57
Frequently Bought Together
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel Heavy-Duty 6 x 2" Wheel
Couldn't load pickup availability
Grade 43 Clevis Slip Hook with Latch, 1/4", 2,600 lb WLL
Couldn't load pickup availability
Wire Rope Sleeve, 3/32", Copper, Zinc Plated
Couldn't load pickup availability
Quick Link 1/4" Chain Size 880 Lb Safe Load
Couldn't load pickup availability
Caster Swivel Institutional 5 x 1-3/8" Wheel
Couldn't load pickup availability
Caster Rigid Heavy-Duty 5 x 2" Wheel
Couldn't load pickup availability
Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588632 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 5 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 400 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.575 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
