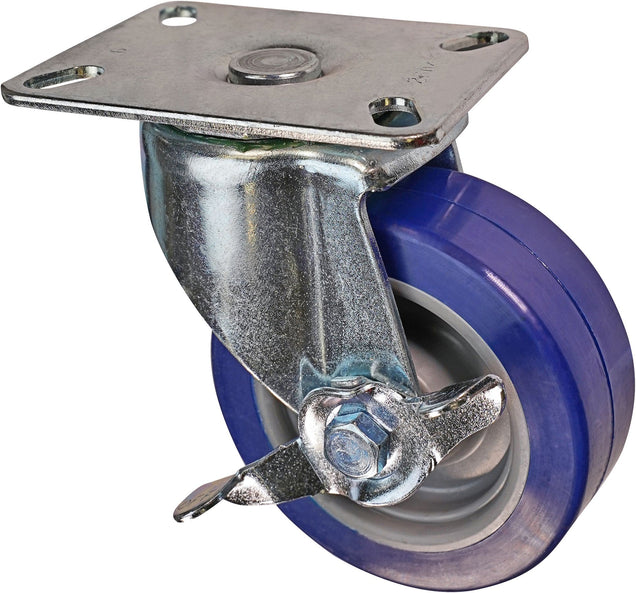

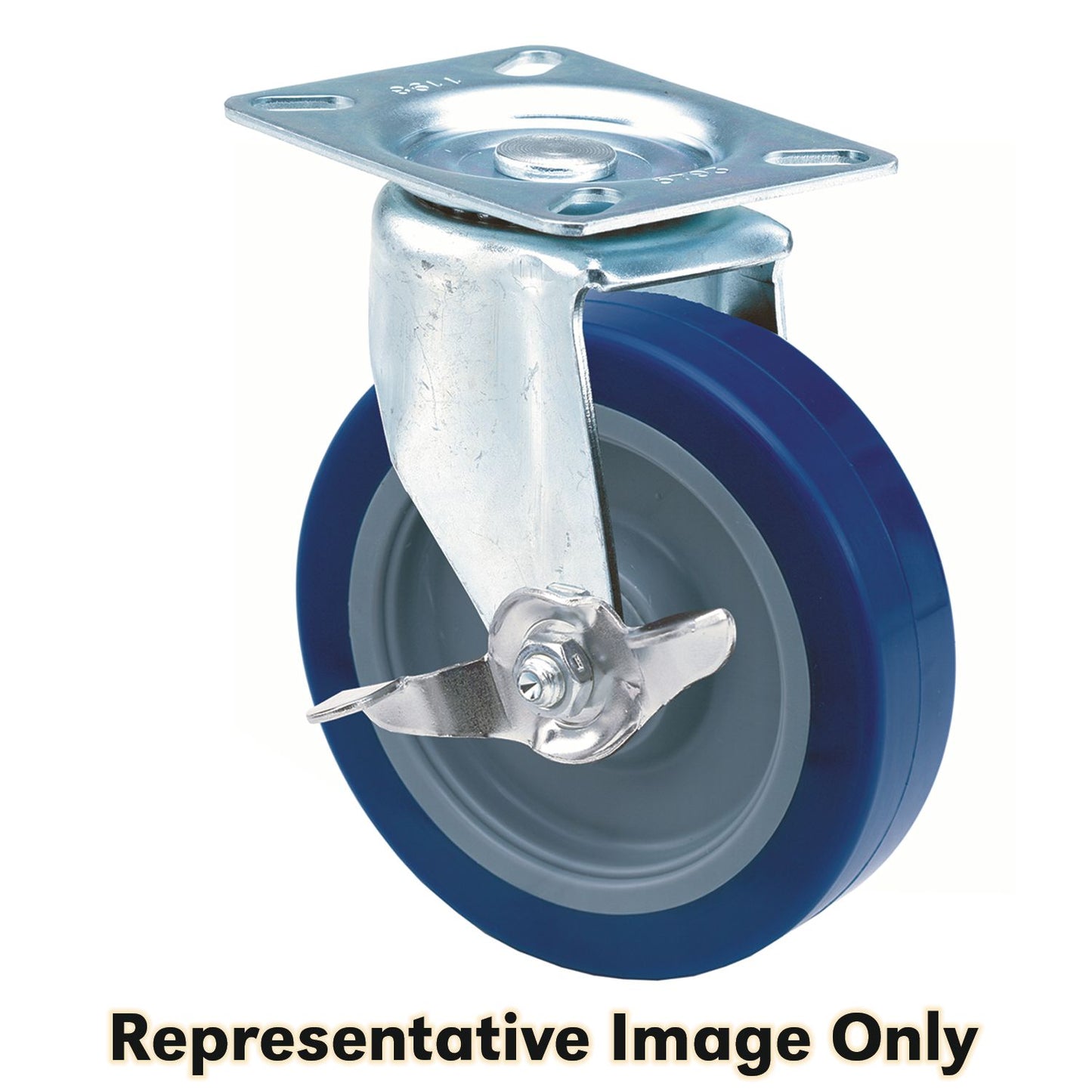

Caster Swivel with Brake Polyurethane Wheel
(Pack of
1.0)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 15-57
Frequently Bought Together
Brake Kit For Light-Medium-Duty Swivel Casters
Couldn't load pickup availability

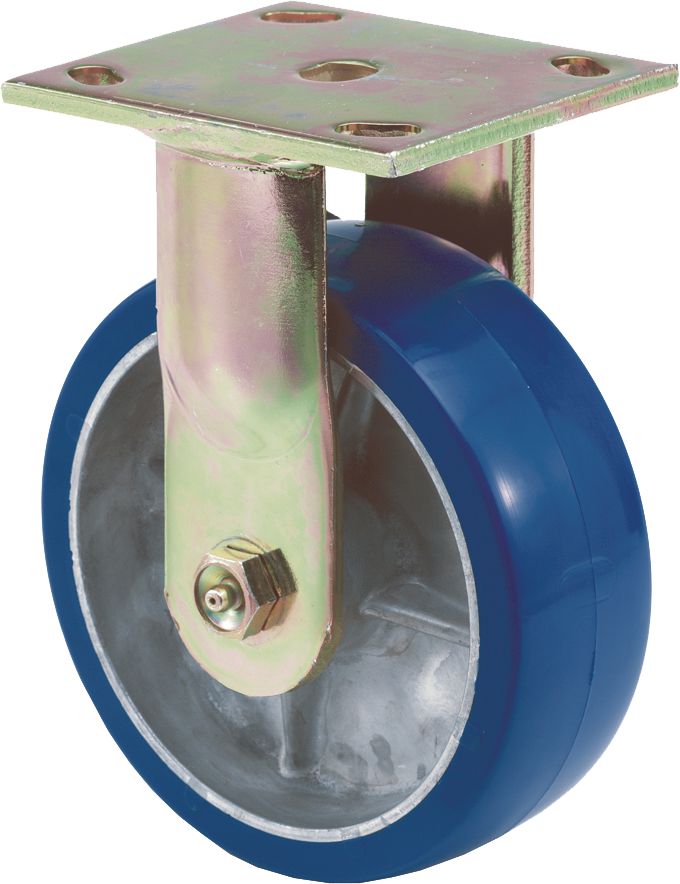

Caster Rigid Medium Duty 6 x 1-3/8" Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Super-Size AkroBin®, Yellow, 20" x 12-3/8" x 8"
Couldn't load pickup availability
AkroBin®, Yellow, 10-7/8" x 5-1/2" x 5"
Couldn't load pickup availability
Super-Size AkroBin®, Red, 23-7/8" x 18-1/4" x 12"
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability

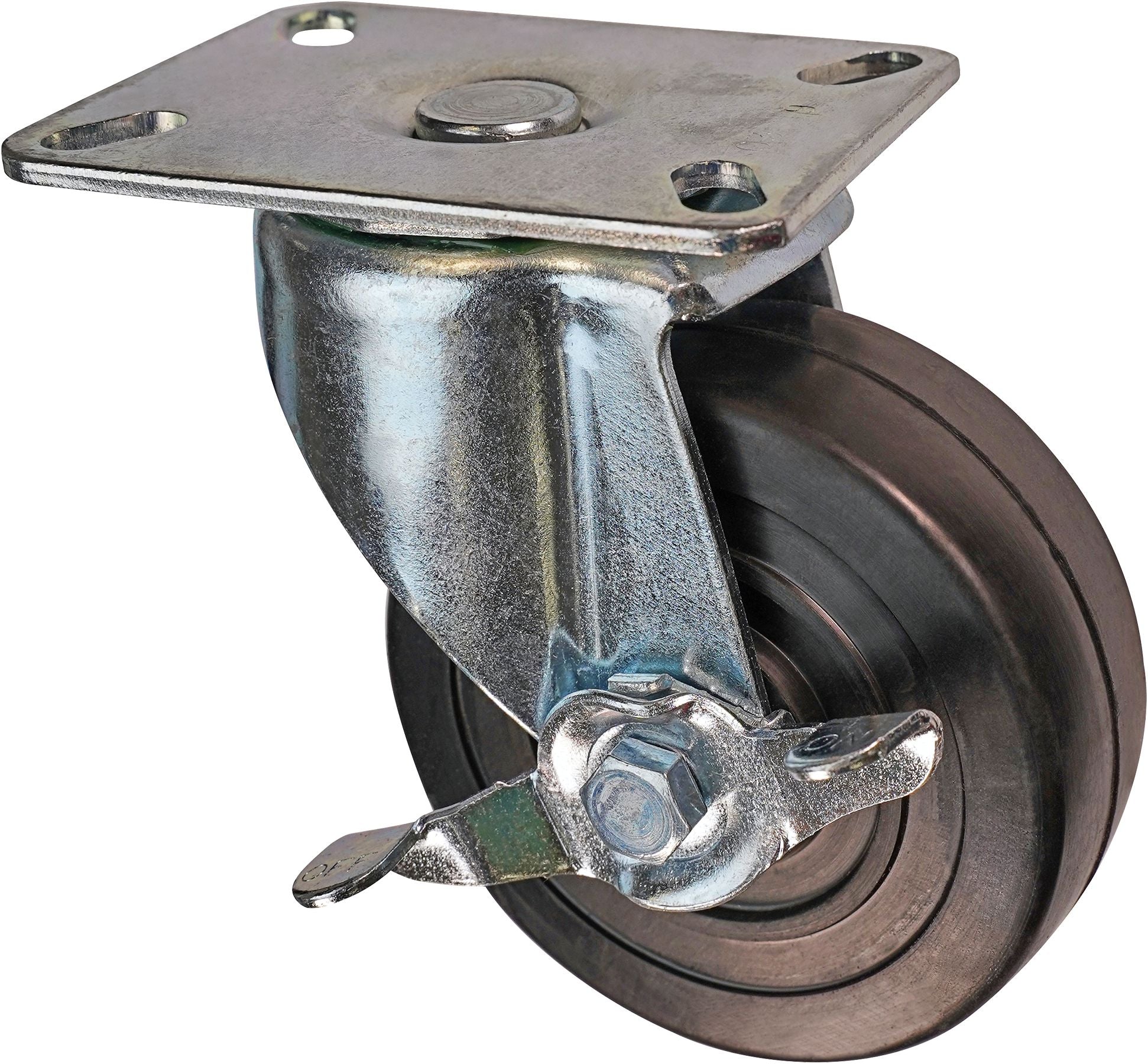

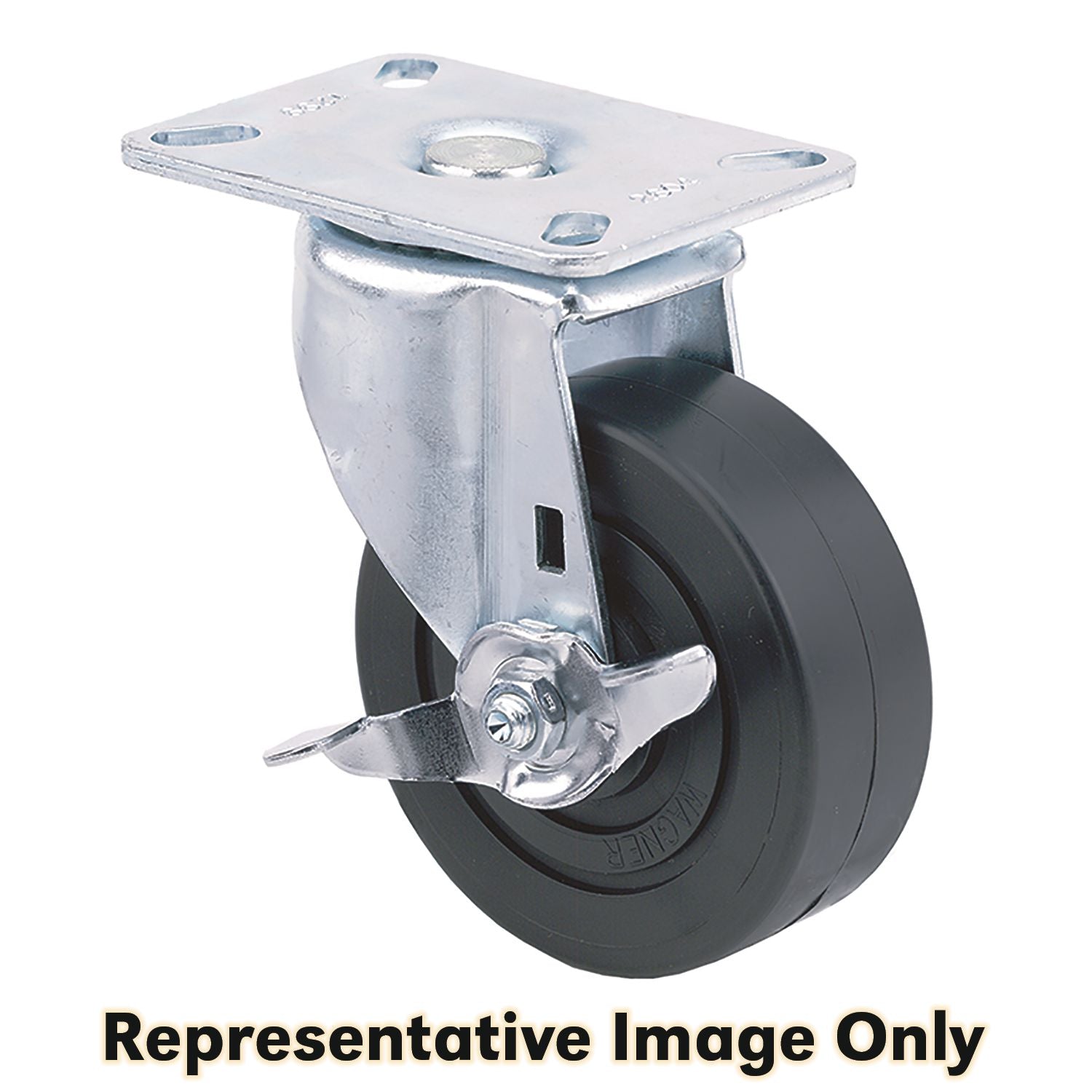

Caster Swivel with Brake Soft Rubber Wheel
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Flat Washer 316 Stainless Steel 3/8"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588622 |
|---|---|
| Type | Swivel |
| Style | Light-Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 3 " |
| Wheel Width | 1-1/4 " |
| Load Rating | 210 lb |
| Top Plate Overall Size | 2-3/4" x 3-3/4 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3 " |
| Top Plate Hole Diameter | 11/32 " |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.31 lb |
