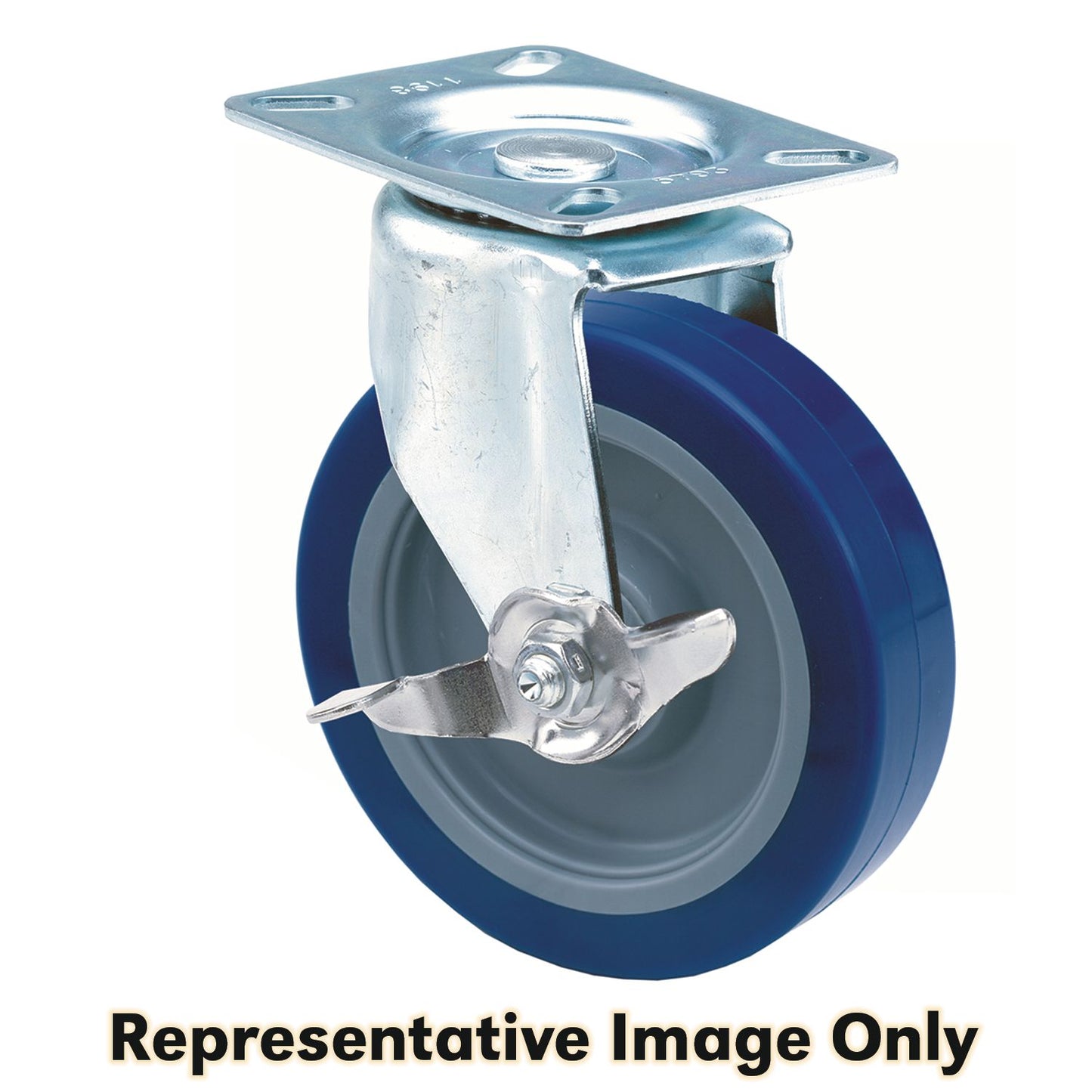

Caster, Swivel with Brake, Polyurethane Wheel, 5" Diameter, 1-3/8" Wheel Width, 400 lb Load Rating
(Pack of
1)
SKU:1588634 Item#: 1588634
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
Catalog page#: 15-57
Frequently Bought Together
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/2", 4,000 lb WLL
Couldn't load pickup availability
Screw Pin Anchor Shackle, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Tarp Strap Epdm Rubber with Hooks 6" Long
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Caster Swivel with Brake Polypropylene Wheel
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588634 |
|---|---|
| Type | Swivel |
| Style | Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 5 " |
| Wheel Width | 1-1/2 " |
| Overall Height | 6-1/16 " |
| Load Rating | 400 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.535 lb |
