Chatterless Countersink 90° Six Flute 1/4"
(Pack of
1)
Centerline Angle 45°, Included Angle 90°
• Staggered cutting edges inhibit the occurrence of resonant or harmonic vibration
• No break-in period required
• Made of M2 high-speed steel
• Made in USA
45° Centerline Angle
• Can be used in drill presses, screw machines, automatics, lathes, hand tools or special set-ups
NOTE: Use of a good quality cutting fluid is recommended.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-33
Frequently Bought Together

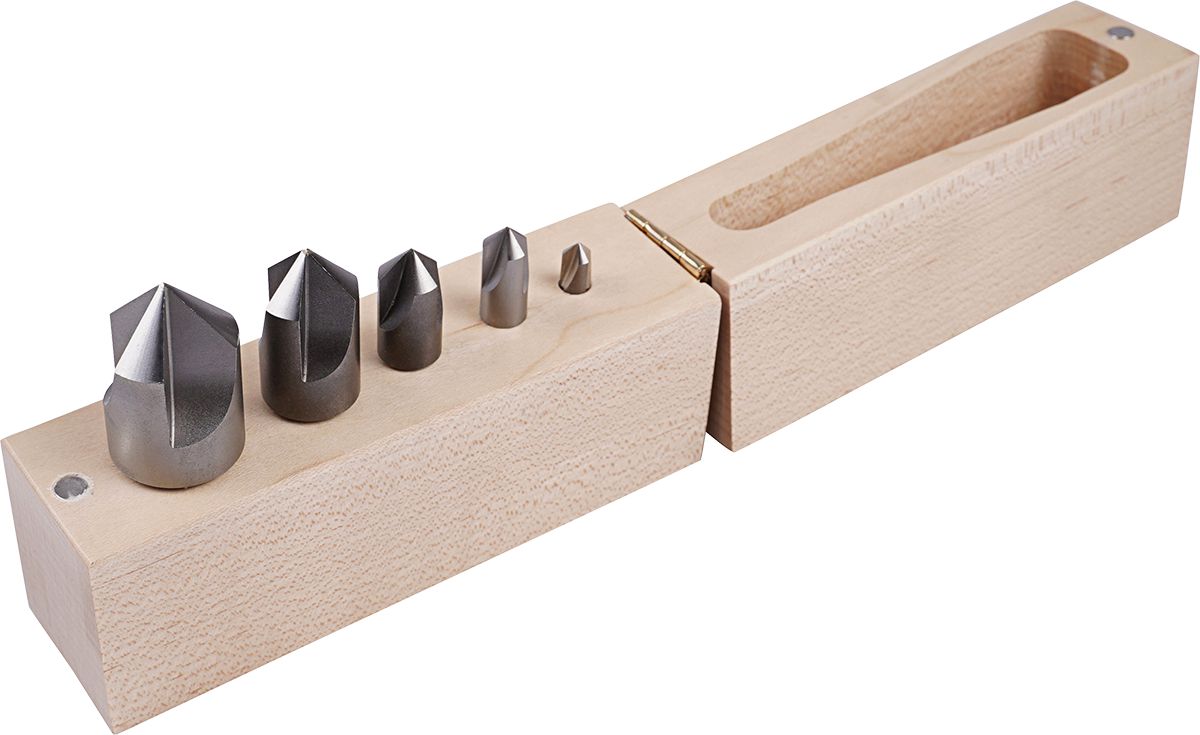

Chatterless Countersink Kit 4Pcs 90° Six Flute
Couldn't load pickup availability

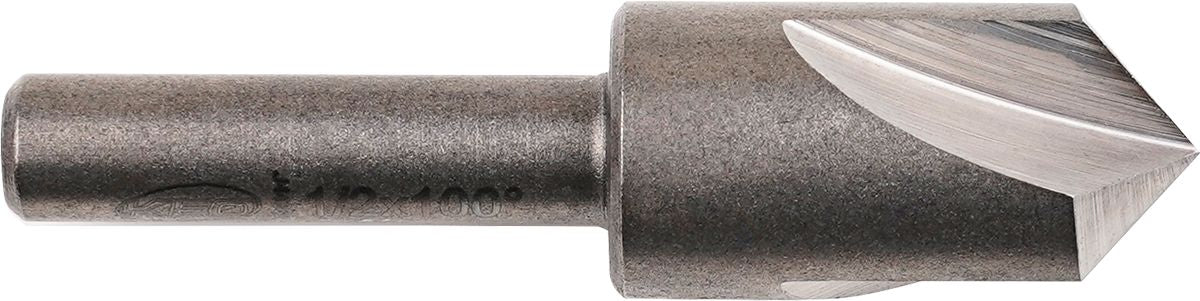

Cryocut 1/2" Body Dia. 90o Angle Countersink, 3-Flute
Couldn't load pickup availability
Cryocut 5PC Set, 90o Angle Countersink, 3-Flute, W/ Storage Box
Couldn't load pickup availability
Cryocut 1/8" Body Dia. 100o Angle Countersink, 1-Flute
Couldn't load pickup availability
Cryocut 1/2" Body Dia. 100o Angle Countersink, 3-Flute
Couldn't load pickup availability
Cryocut 5/8" Body Dia. 100o Angle Countersink, 3-Flute
Couldn't load pickup availability
Twist-On Surface Conditioning Disc 2" Brown
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/16"
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Product Description
Centerline Angle 45°, Included Angle 90°• Staggered cutting edges inhibit the occurrence of resonant or harmonic vibration
• No break-in period required
• Made of M2 high-speed steel
• Made in USA
45° Centerline Angle
• Can be used in drill presses, screw machines, automatics, lathes, hand tools or special set-ups
NOTE: Use of a good quality cutting fluid is recommended.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 57142 |
|---|---|
| Type | Countersink |
| Body Diameter | 1/4 " |
| Flutes | Six |
| Included Angle | 90 ° |
| Centerline Angle | 45 ° |
| Shank Size | 1/4 " |
| Shank Length | 13/16 " |
| Overall Length | 2 " |
| For Screw Size | No. 0 - No. 3 |
| Maximum RPM (Aluminum) | 2,130 RPM |
| Maximum RPM (Cast Iron or Mild Steel) | 1,060 RPM |
| Material | M2 High Speed Steel |
| UNSPSC #: | 23241603 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
