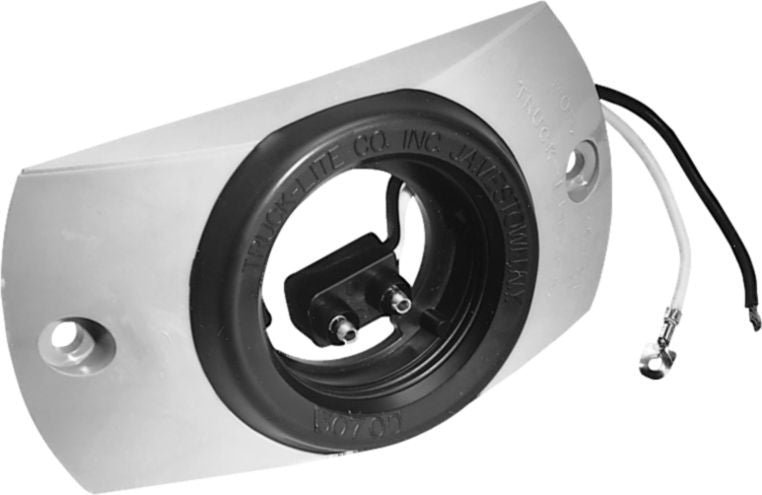

Clearance Lamp, Red, Super 10 Series, 2-1/2" Diameter Lexan® Sealed Lens, 1" Depth, Surface/Deflector Mounted
(Pack of
1)
SKU:98302 Item#: 98302
• Clearance lamps indicate overall width and height of vehicle
• Amber lamps mounted on extreme edges of front and side of vehicle
• Red lamps on rear of vehicle
• One or two wires
Lens: 2-1/2" dia. Lexan®Lamp Depth: 1"Housing and Branch Deflector Mount: Lexan®Mounting: Rubber grommet requires a 2-25/32" holeWire Assembly: Contact plug with grease-packed female contacts for better corrosion resistance
• Available in component parts only
• Four-way, shock-mounted bulb, resists shock from all directions for prolonged life
• Sonically sealed units
• Can be surface-mounted or deflector-mounted
• Throwaway unit – no bulb replacement
Couldn't load pickup availability
Catalog page#: 23-37
Frequently Bought Together
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
DT Series Plug 13A 2 Contacts
Couldn't load pickup availability
Cable Seal Gray 16-14 AWG 20A 12V 280 Series/WP
Couldn't load pickup availability
Socket Terminal Contact 16-14 AWG
Couldn't load pickup availability
Stop/Tail/Turn Lamp Hi Count® LED 12V Red
Couldn't load pickup availability
Turn Signal/Stop Lamp Sealed Unit Red
Couldn't load pickup availability
Sealed Marker Lamp Pigtail 6"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Product Description
• Clearance lamps indicate overall width and height of vehicle• Amber lamps mounted on extreme edges of front and side of vehicle
• Red lamps on rear of vehicle
• One or two wires
Lens: 2-1/2" dia. Lexan®Lamp Depth: 1"Housing and Branch Deflector Mount: Lexan®Mounting: Rubber grommet requires a 2-25/32" holeWire Assembly: Contact plug with grease-packed female contacts for better corrosion resistance
• Available in component parts only
• Four-way, shock-mounted bulb, resists shock from all directions for prolonged life
• Sonically sealed units
• Can be surface-mounted or deflector-mounted
• Throwaway unit – no bulb replacement
Technical Specifications
| Item#: | 98302 |
|---|---|
| Manufacturer Model #: | 10208R |
| Type | Replacement Light |
| Color | Red |
| Truck-Lite No. | 10208R |
| UNSPSC #: | 25172907 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
