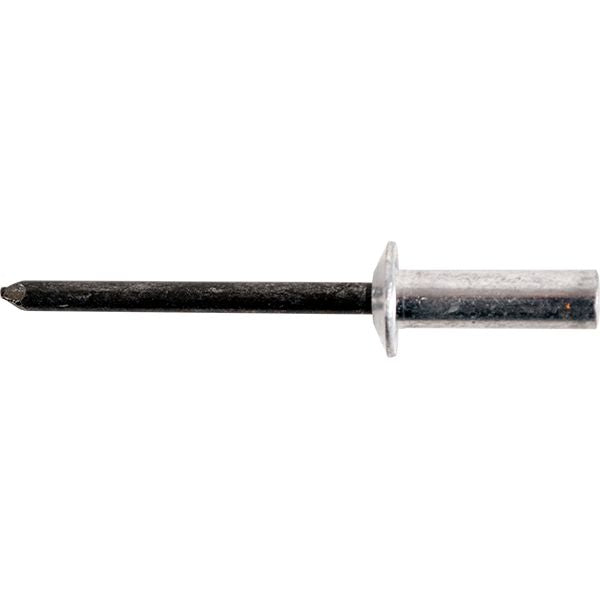

Closed End Rivet Dome Head Aluminum 3/16"
(Pack of
100.0)
Dome Head
• Seals out liquids, moisture, air and other contaminants
• Complete stem retention
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-11
Frequently Bought Together
Closed End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 5/8-11
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/32"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
Dome Head• Seals out liquids, moisture, air and other contaminants
• Complete stem retention
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 97069 |
|---|---|
| Type | Closed End |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 68 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.781 " |
| Shear Strength | 500 lb |
| Tensile Strength | 690 lb |
| UNSPSC #: | 31162200 |
| TAA Compliant: | No |
| Weight: | 0.72 lb |
