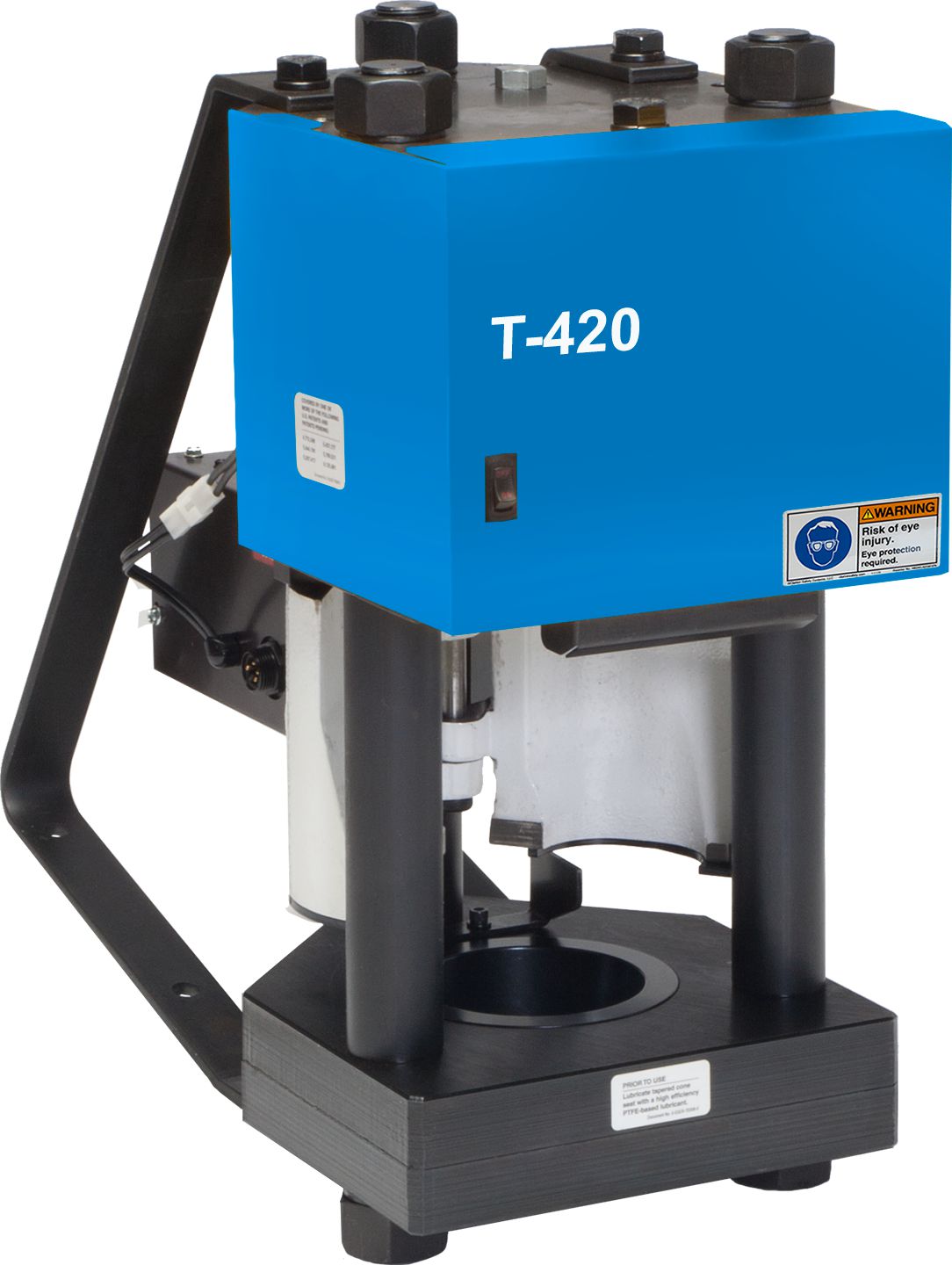

Coll-O-Crimp Super I Stationary Crimper, Crimps Thru 1-1/4" 6-Wire
(Pack of
1)
SKU:63680 Item#: 63680
For greater range and capacity in creating secure connections, choose the bench-mounted Super I System T-420-001. It’s an ideal way to make secure, reliable hose assemblies quickly and efficiently. A few simple steps and your operation is up and running.
• Crimps Coll-O-Crimp® 4-spiral hoses sizes (-6) through (-20) and Coll-O-Crimp® one- and two-wire braided hose sizes (-4) through (-20)
• Overall press capacity of up to 1-1/4" for braided hose and up to 1-1/4" for 4-spiral hose
• Compact size: 10"W x 22"H x 20-1/2"D
• Type: Positive stop
• Production volume: Medium
System includes:
Coll-O-Crimp® Press T-420-1, Item No. 63697
220V Electric Pump T-421U, Item No. 63681
Hose Assembly with Adapters T-410-22
4S Collets:
(-8) ET425DC-4S8, Item No. 1555844
(-12) ET425DC-4S12, Item No. 1555860
(-16) ET425EC-4S16, Item No. 1555814
(-20) ET425DC-4S20, Item No. 1555845
Z-Series Collets:
(-4) ET425DC-4Z, Item No. 1555751
(-6) ET425DC-6Z, Item No. 1555775
(-8) ET425DC-8Z, Item No. 1555764
(-12) ET425DC-12Z, Item No. 1555755
(-16) ET425DC-16Z, Item No. 1555822
Spacer Rings/Adapter Bowls:
Maroon – ET425SR-105A, Item No. 1555850
Adapter Bowl ET425AR-14, Item No. 1555842
*For corresponding collets and spacer rings, see Hose End and Tool Selector Chart.
Couldn't load pickup availability
Catalog page#: 8-30
Frequently Bought Together
ET500 Mini Crimper Starter Assortment
Couldn't load pickup availability
Spacer Ring Black
Couldn't load pickup availability
Small Bore Series Die 0.67 Yellow
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.489 x 0.07"
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/4"
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
For greater range and capacity in creating secure connections, choose the bench-mounted Super I System T-420-001. It’s an ideal way to make secure, reliable hose assemblies quickly and efficiently. A few simple steps and your operation is up and running.• Crimps Coll-O-Crimp® 4-spiral hoses sizes (-6) through (-20) and Coll-O-Crimp® one- and two-wire braided hose sizes (-4) through (-20)
• Overall press capacity of up to 1-1/4" for braided hose and up to 1-1/4" for 4-spiral hose
• Compact size: 10"W x 22"H x 20-1/2"D
• Type: Positive stop
• Production volume: Medium
System includes:
Coll-O-Crimp® Press T-420-1, Item No. 63697
220V Electric Pump T-421U, Item No. 63681
Hose Assembly with Adapters T-410-22
4S Collets:
(-8) ET425DC-4S8, Item No. 1555844
(-12) ET425DC-4S12, Item No. 1555860
(-16) ET425EC-4S16, Item No. 1555814
(-20) ET425DC-4S20, Item No. 1555845
Z-Series Collets:
(-4) ET425DC-4Z, Item No. 1555751
(-6) ET425DC-6Z, Item No. 1555775
(-8) ET425DC-8Z, Item No. 1555764
(-12) ET425DC-12Z, Item No. 1555755
(-16) ET425DC-16Z, Item No. 1555822
Spacer Rings/Adapter Bowls:
Maroon – ET425SR-105A, Item No. 1555850
Adapter Bowl ET425AR-14, Item No. 1555842
*For corresponding collets and spacer rings, see Hose End and Tool Selector Chart.
Technical Specifications
| Item#: | 63680 |
|---|---|
| Manufacturer Model #: | T-420-N |
| Category | Crimper System |
| Description | Coll-O-Crimp® Super I System |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
| Weight: | 375.0 lb |
