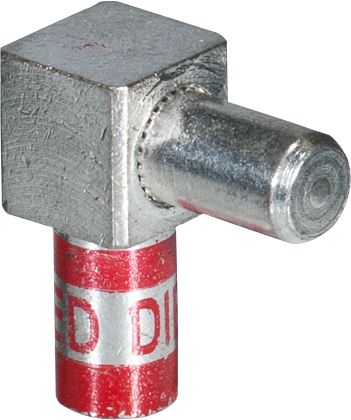

Color Coded Motor Pigtail Connector, 8 AWG, Male, Copper, Tin Plate, Red, 1 Body Size
(Pack of
5)
SKU:94378 Item#: 94378
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Couldn't load pickup availability
Catalog page#: 17-74
Frequently Bought Together
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Cable Tie 13.38" Black
Couldn't load pickup availability
Cable Tie 11.41" Black
Couldn't load pickup availability
Standard Two-Hole Lug 4 AWG Gray
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 8 AWG
Couldn't load pickup availability
Standard One-Hole Lug 3/0 AWG Orange
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" Wire Dia., 1/4" Shank
Couldn't load pickup availability
Wire Cup Brush 2-3/4" Dia., .020" Wire Dia., 5/8"-11 Arbor
Couldn't load pickup availability
Mega-Stick
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" Wire Dia., 1/4" Shank
Couldn't load pickup availability
Wire Cup Brush 2-3/4" Dia., .020" Wire Dia., 5/8"-11 Arbor
Couldn't load pickup availability
Mega-Stick
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94378 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 8 AWG |
| Color | Red |
| Body Size | 1 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
