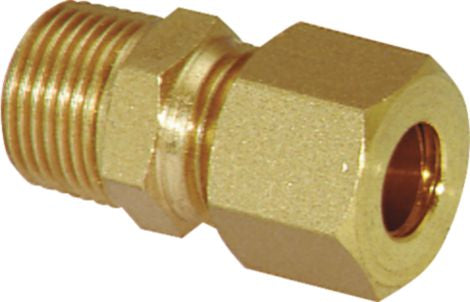

Compression Connector, Brass, 1/8-28 x 8mm, Male BSPT x Tube, 500PSI
(Pack of
2)
Male BSPT Thread (A) x Tube (B)
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-11
Frequently Bought Together
Pipe Adapter Brass 1/8-27 x 1/4-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Pipe Tee Brass 1/2-14 x 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Union Nylon 1/4 x 1/4"
Couldn't load pickup availability
Forged Body Ball Valve Brass 1 x 1"
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Product Description
Male BSPT Thread (A) x Tube (B)• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Technical Specifications
| Item#: | 51006 |
|---|---|
| Fitting Type | Compression |
| Configuration | Male Connector |
| Material | Brass |
| Connection Type A x B | Male BSPT x Tube |
| Fitting Dimension A | 1/8-28 |
| Fitting Dimension B | 8 mm |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
