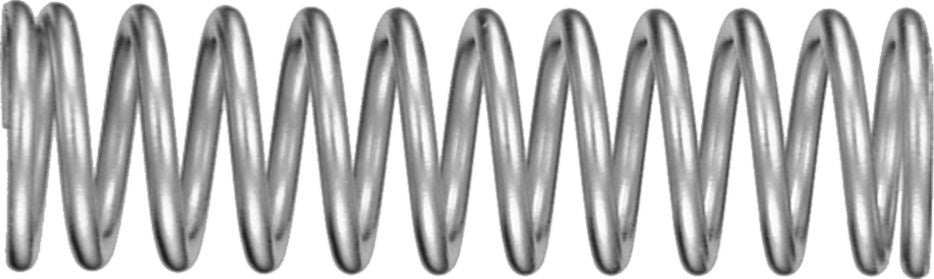

Compression Spring, Steel, 12 Wire Gauge, 21/32" ID, 7/8" OD, 3" Length, 12 Coils, 55lbs Maximum Work Load
(Pack of 2)

SKU:89610 Item#: 89610

Lawson Products

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Catalog page#: 16-36, 16-39

Frequently Bought Together

General Purpose Duct Tape 2" x 60 Yards

Automotive Refinishing Tape 2" x 60 Yards

Valve Action® Permanent Paint Marker Red

Universal Sorbent Pad

SafetyPro 8 Mil Nitrile Glove Orange X-Large

Split Key Ring 1"

Butt Connector 16 to 14 AWG Blue

USS Flat Washer Thru-Hardened Steel 3/8"

Nylon Cable Tie 4" Black

Valve Action® Permanent Paint Marker Black

Round Tag Brass 1-1/2"

Round Tag Brass 1"

Extension Spring 13/16 x 4"

Extension Spring 9/16 x 3-1/4"

Extension Spring 11/16 x 5-1/2"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89610
Type	Compression Spring
O.D.	7/8 "
Length	3 "
I.D.	21/32 "
Wire Diameter	0.105 "
Wire Gauge	12
Number of Coils	12
Rate	38 lb./in.
Maximum Work Load	55 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.17 lb
