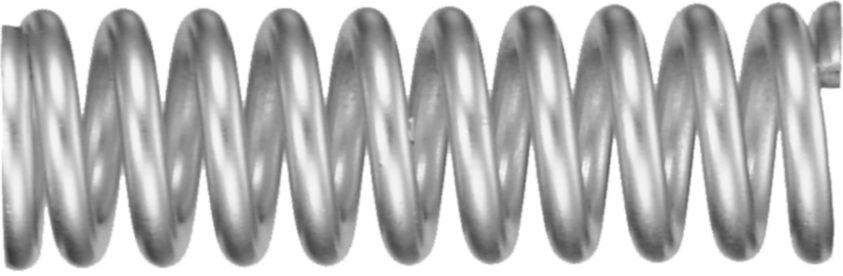

Compression Spring 9/16 x 2-3/4"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Valve Action® Permanent Paint Marker Blue
Couldn't load pickup availability
Rectangular Tag Brass 2 x 1"
Couldn't load pickup availability
Broom Handle Replacement Thread
Couldn't load pickup availability
BK1 Bearkat Safety Glasses
Couldn't load pickup availability
Nemesis Safety Glasses
Couldn't load pickup availability
SafetyPro 8 Mil Nitrile Glove Orange X-Large
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
3310 LED Glow Light 3x AA 6.14" Green/Glow
Couldn't load pickup availability
Blue GT Series Extra Heavy Duty Wiper Roll
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 13.4"
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Compression Spring 15/16 x 3"
Couldn't load pickup availability
Compression Spring 1/2 x 1-5/8"
Couldn't load pickup availability
Compression and Extension Spring Kit 322Pcs
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89607 |
|---|---|
| Type | Compression Spring |
| O.D. | 7/8 " |
| Length | 2-3/4 " |
| I.D. | 9/16 " |
| Wire Diameter | 0.148 " |
| Wire Gauge | 9 |
| Number of Coils | 11 |
| Rate | 195 lb./in. |
| Maximum Work Load | 140 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.28 lb |
