Connecting Link, Double Strand, Steel, Industry No. 40-2, 1/2
Connecting Link, Double Strand, Steel, Industry No. 40-2, 1/2

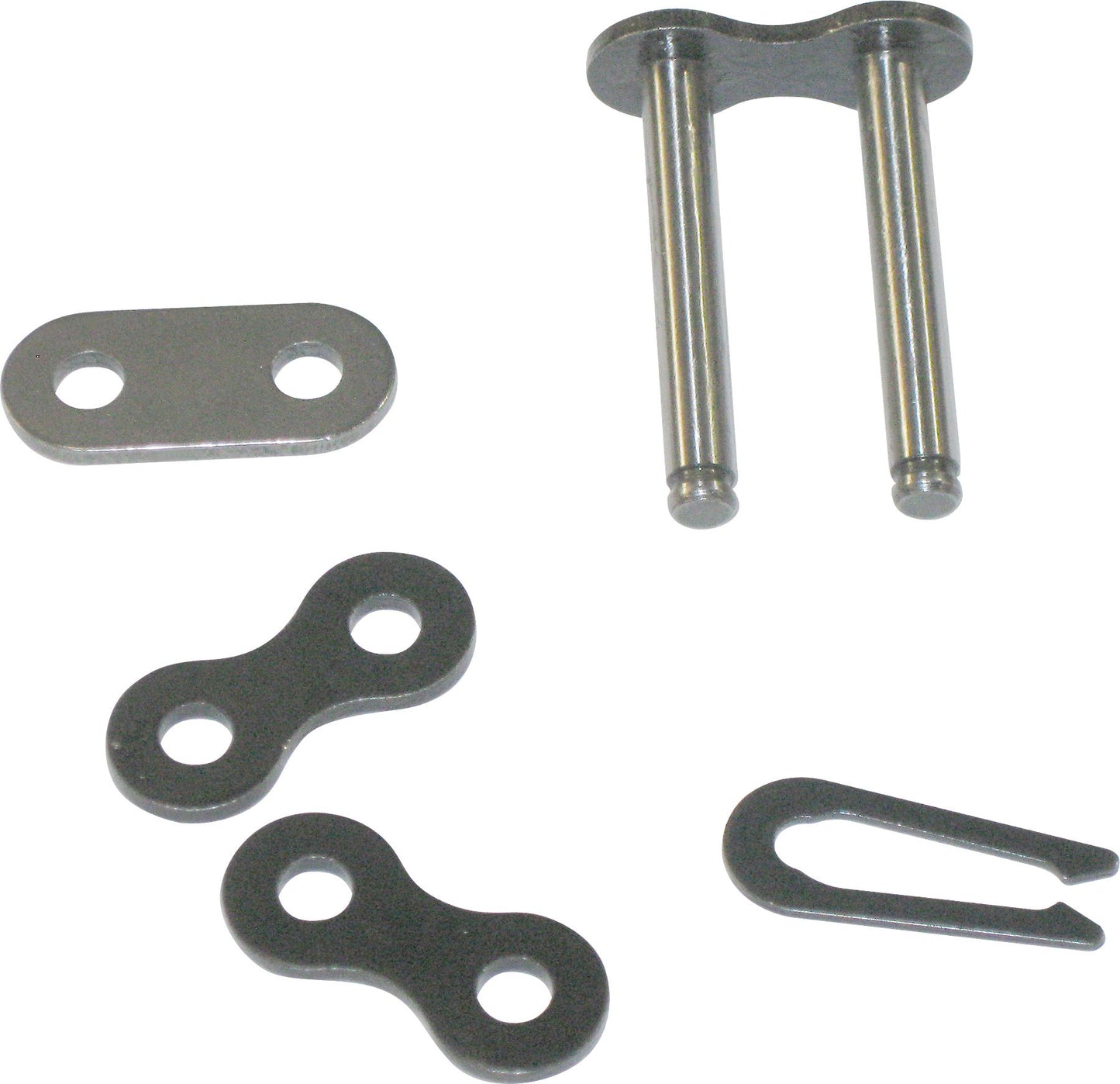

Connecting Link, Double Strand, Steel, Industry No. 40-2, 1/2" Pitch, 8,580lbs Average Tensile Strength
(Pack of 5)

Item#: 85379

Daido®

Connecting Link, Double Strand, Steel, Industry No. 40-2, 1/2" Pitch, 8,580lbs Average Tensile Strength

Read More
Check Availability

Catalog page#: 15-62

Frequently Bought Together

Connecting Link, Single Strand, Steel, Industry No. 10B, 5/8

Connecting Link, Single Strand, Steel, Industry No. 10B

Item#: 1443386
Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2, 3/4

Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2

Item#: 57045
Connecting Link, Single Strand, Steel, Industry No. 08B, 1/2

Connecting Link, Double Strand, Steel, Industry No. 08B-2

Item#: 57035
Wire Rope, Steel, Bare, 7x7, 1/16

Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439713
Shoulder Eyebolt, Machinery, Self-Colored, 7/16

Eye Bolts, Machinery, 1/2 x 1-1/2"

Item#: 85519
Wire Rope, Steel, Nylon Coated, 7x7, 3/32

Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength

Item#: 1439061
Connecting Link, Double Pitch-Conveyor, Steel, Nickel Plated, Industry No. C2042, 1

Connecting Link, Double Pitch-Conveyor, Steel, Nickel Plated, Industry

Item#: 1443537
Connecting Link, Double Strand, Steel, Nickel Plated, Industry No. 50-2, 5/8

Connecting Link, Double Strand, Steel, Nickel Plated, Industry No. 50-

Item#: 1443506
Chain Puller Roller Chain 1 - 3

Chain Puller Roller Chain 1 - 3" Pitch Size

Item#: 97705
Flat Washer Property Class 10.9 M22, Flat Washer, Property Class 10.9, Carbon Steel, M22

Flat Washer Grade 12 Thru-Hardened Steel M10

Item#: 87511
Hex Nut Grade 8 Alloy Steel 1-8, ANSI B18.2.2 Hex Nut, Grade 8, Alloy Steel, Zinc Finish, Coarse Thread, 1-1/2

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100
Superbutt Connector 16 to 14 AWG Blue, Superbutt Connector, Extended Barrel, Blue, 16 to 14 AWG, 1.075

Superbutt Connector 16 to 14 AWG Blue

Item#: 94728

Product Description

Connecting Link, Double Strand, Steel, Industry No. 40-2, 1/2" Pitch, 8,580lbs Average Tensile Strength

Technical Specifications

Item#: 85379
Manufacturer Model #: CL40-2
Configuration Connecting Link
Type Double Strand
Style Standard
Material Steel
Finish Plain
Industry Number 40-2
Pitch 1/2 "
Roller Width 0.313 "
Roller Diameter 0.312 "
Plate Thickness 0.059 "
Plate Height 0.472 "
Minimum Tensile Strength 7,040 lb
Average Tensile Strength 8,580 lb
Maximum Load 1,408 lb
UNSPSC #: 31163027
TAA Compliant: Yes
Weight: 0.18 lb
