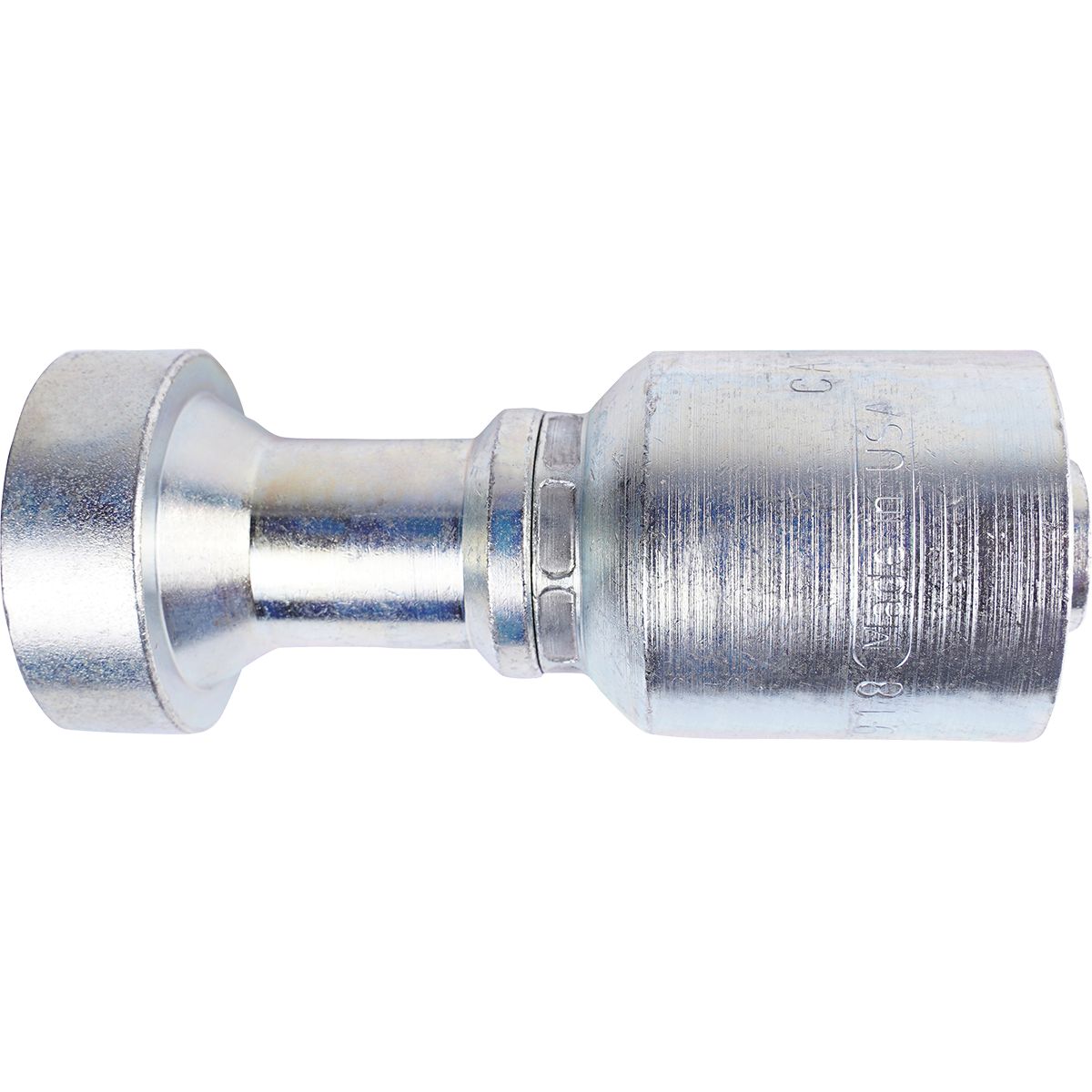

Crimp-On Coupling CAT Flange, Straight Rigid, 3/4"(-12) x 3/4"(-12)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Z Series Crimp-On Hose End 5/8" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Elbow Flare 45° 1" x 1-5/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 1-14
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Hex Bushing Steel 1/2-14 x 3/8-18
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260347 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Caterpillar/Thick Flange |
| Fitting End Type | Caterpillar/Thick Flange |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1.62 (-12) |
| Flange Diameter | 1.62 " |
| Flange Size | 3/4 " |
| Fitting Series | W |
| Size | (-12)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.775 lb |
