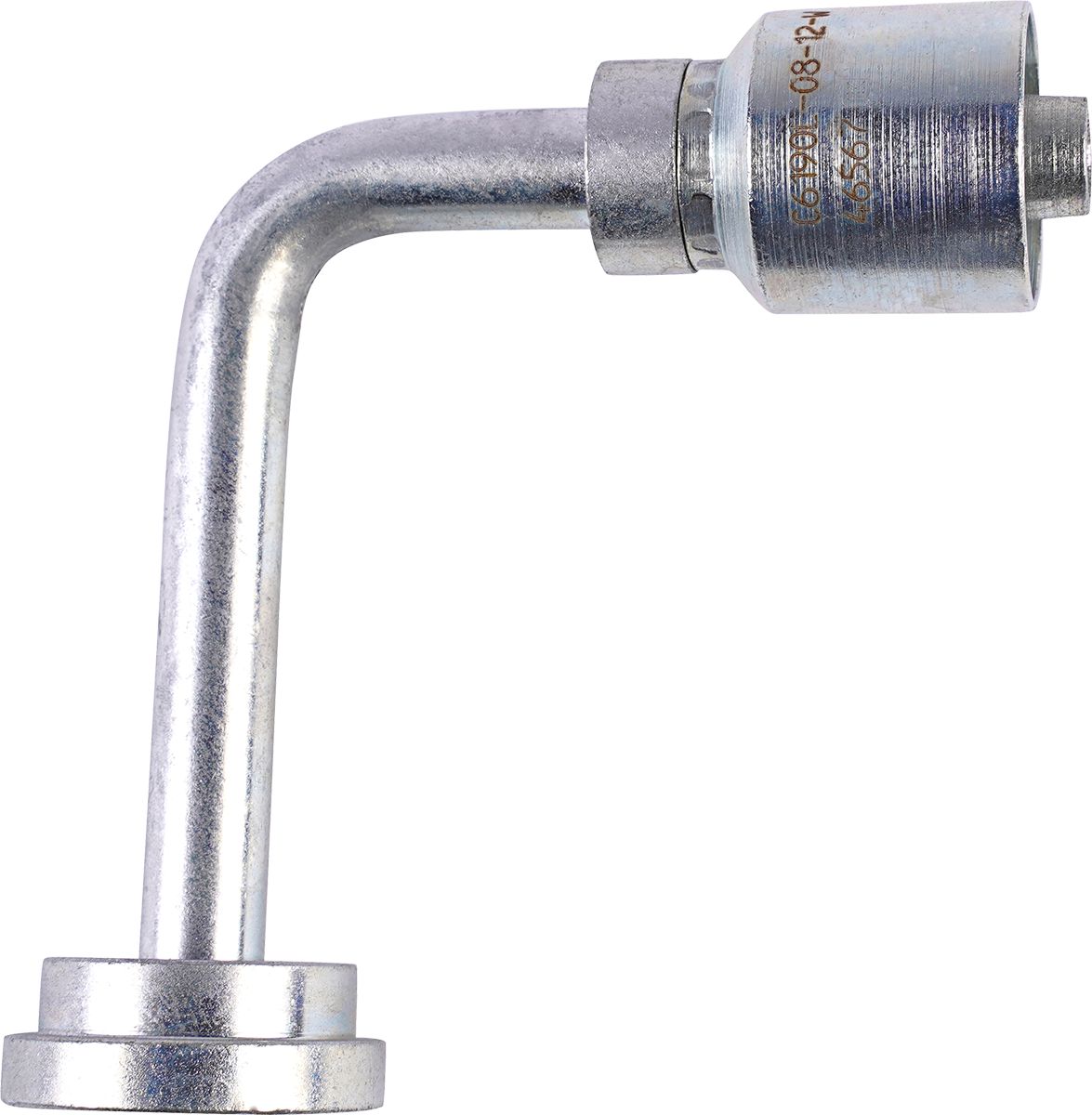

KURT Hydraulics W Carbon Steel Crimp-On Coupling SAE Code 61 Flange, 90° Long Bend Rigid, 1/2" (-8) Hose x 3/4"(-12) Flange
(Pack of
1)
SKU:DY54260836 Item#: DY54260836
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-32
Frequently Bought Together
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260836 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/2 (-8) " |
| Dash Size | -8 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 1.50 (-12) |
| Flange Diameter | 1.50 " |
| Flange Size | 3/4 " |
| Fitting Series | W |
| Size | (-8)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.54 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
