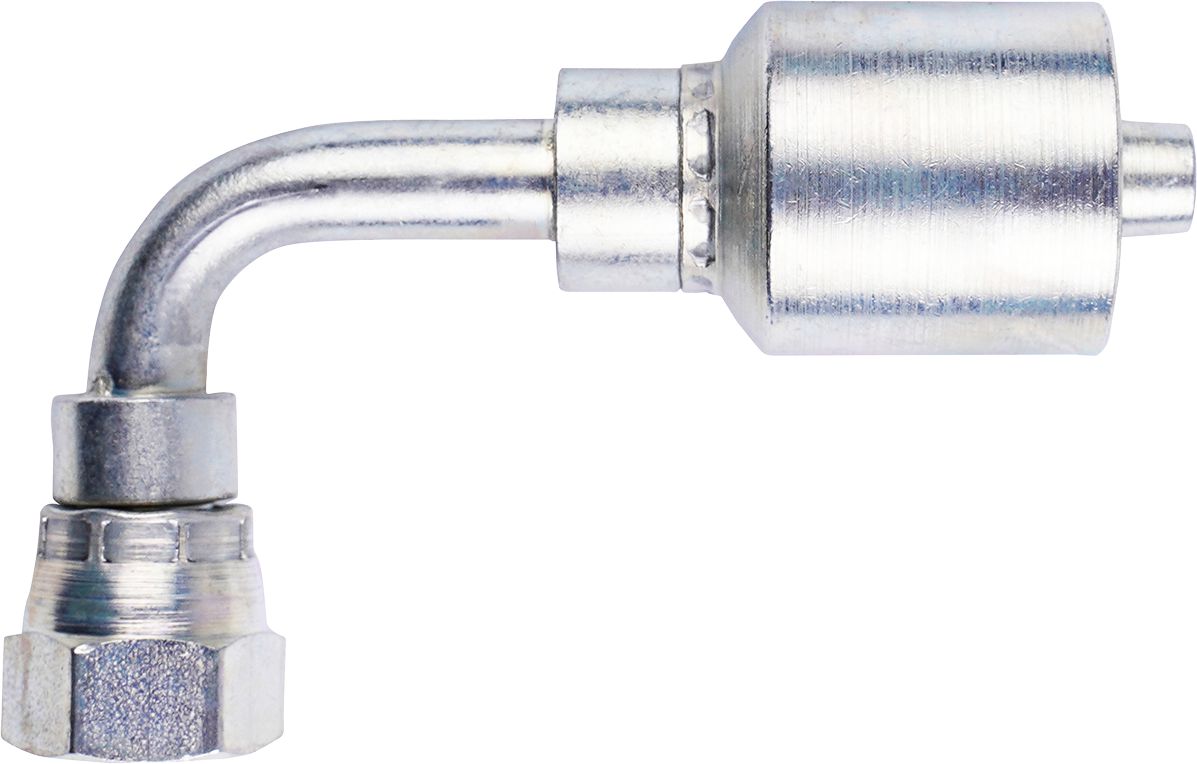

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Heavy, 90° Bend Female Swivel, 1-1/2" (-24) Hose x M52 X 2.0
(Pack of
1)
SKU:DY54261036 Item#: DY54261036
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, KURT Tuff hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• KURT Hydraulics wire style hose couplings are available with many different end configurations including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-28
Frequently Bought Together
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 3/4-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 7/16-20
Couldn't load pickup availability
DOT Union Brass 3/8 x 3/8"
Couldn't load pickup availability
Ball Check Grease Fitting Straight
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, KURT Tuff hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• KURT Hydraulics wire style hose couplings are available with many different end configurations including SAE and Metric.
Technical Specifications
| Item#: | DY54261036 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - s.Rh. DKO Heavy Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | M52 x 2.0 |
| Fitting Series | W |
| O.D. Tube Size 1 | 38 mm |
| Size | (-24)XM52x2.0 |
| Hex Size | 2-5/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 3.55 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
