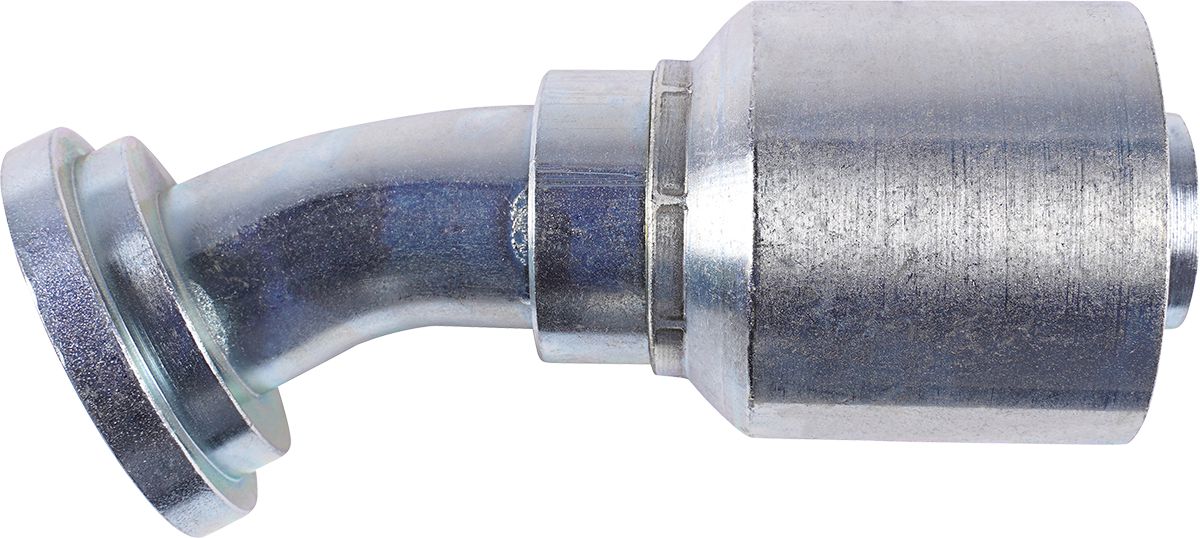

KURT Hydraulics W Carbon Steel Crimp-On Coupling O-Ring Face Seal, 45° Bend Female Swivel, 3/4" (-12) Hose x 1-3/16-12 (-12)
(Pack of
1)
SKU:DY54260465 Item#: DY54260465
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: LE-25
Frequently Bought Together
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 7/8-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/2" x 13/16-16
Couldn't load pickup availability
Hydraulic Cap Nut, 3/4-16"(08) Female JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x 9/16-18
Couldn't load pickup availability
Hex Head Plug Brass 3/8-18 Male NPT
Couldn't load pickup availability
DOT Union Brass 1/2 x 1/2"
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260465 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 1-3/16-12 (-12) |
| Fitting Series | W |
| Size | (-12)X(-12) |
| Hex Size | 1-3/8 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.75 lb |
