E-Z Clip Series Hydraulic Field Attachable Hose Clip for 5/8" (-12) Hose, Carbon Steel
(Pack of
8)
SKU:17429 Item#: 17429
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH001 Multi-Refrigerant Hose

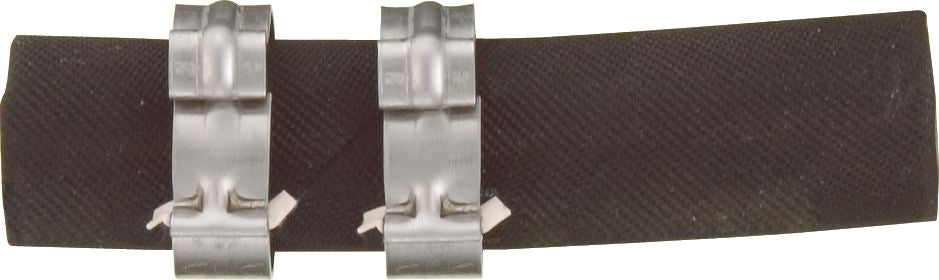

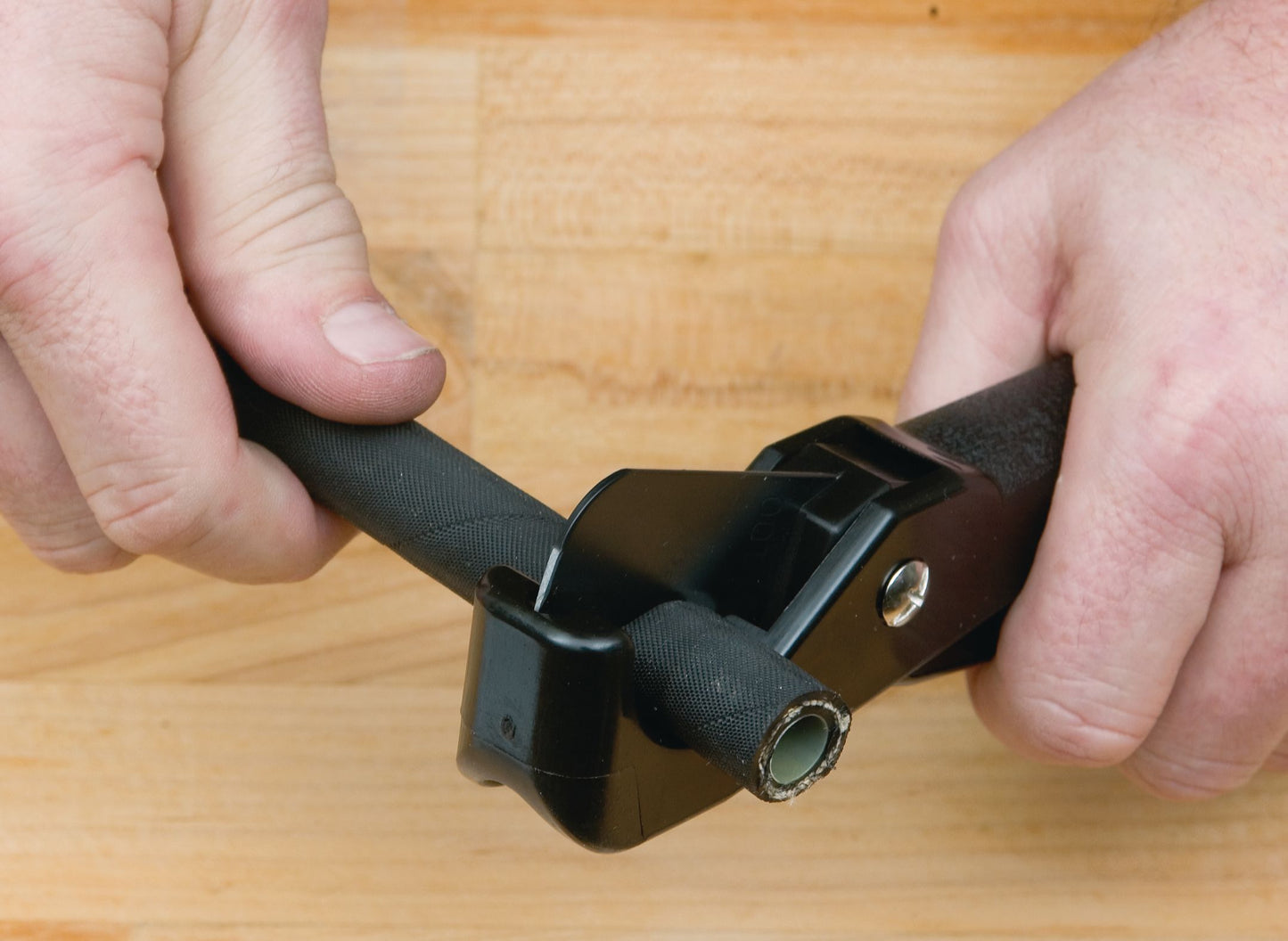

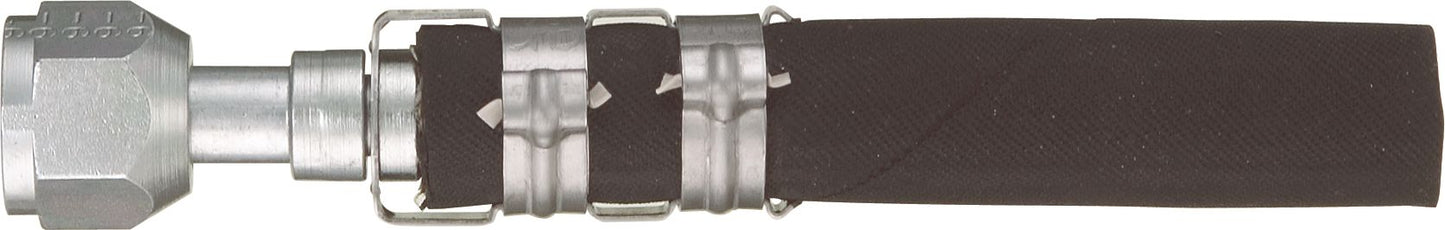

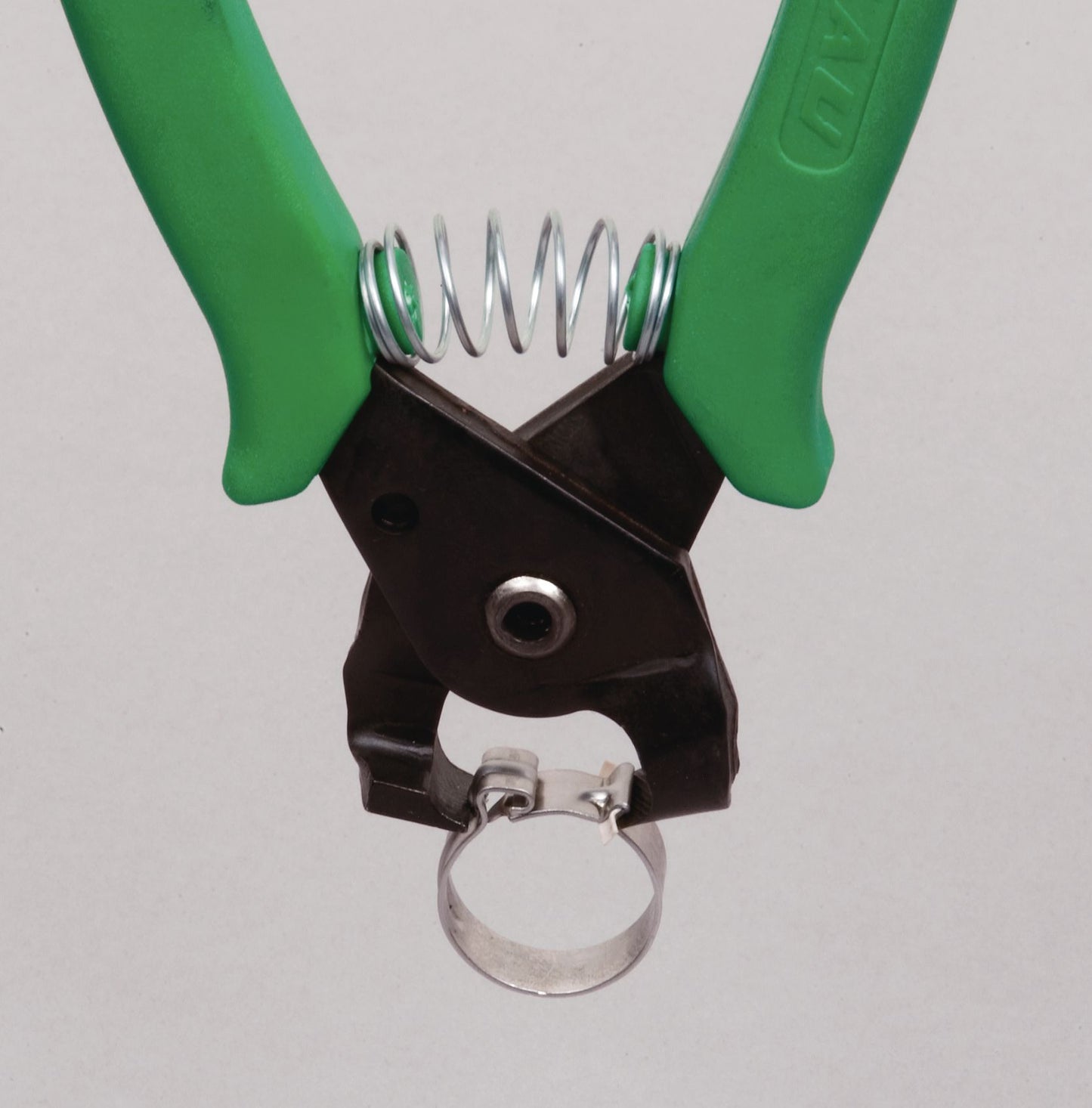

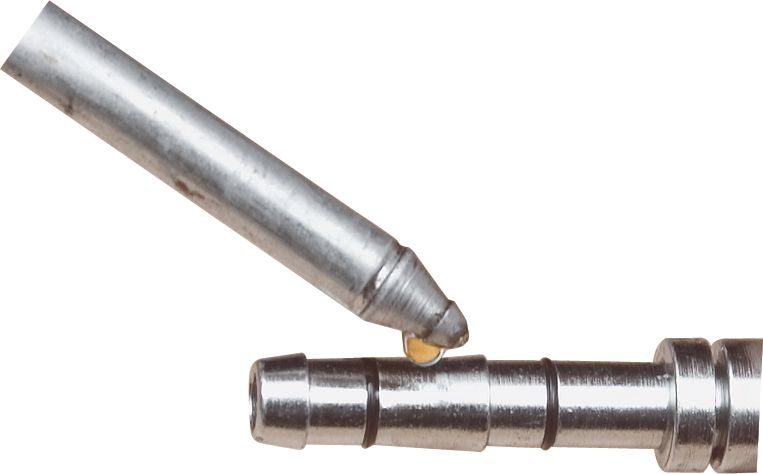

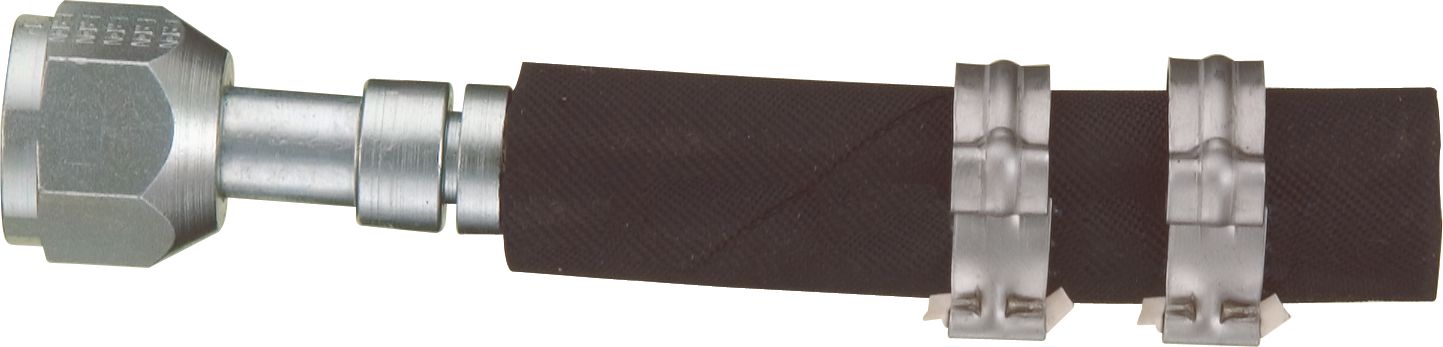

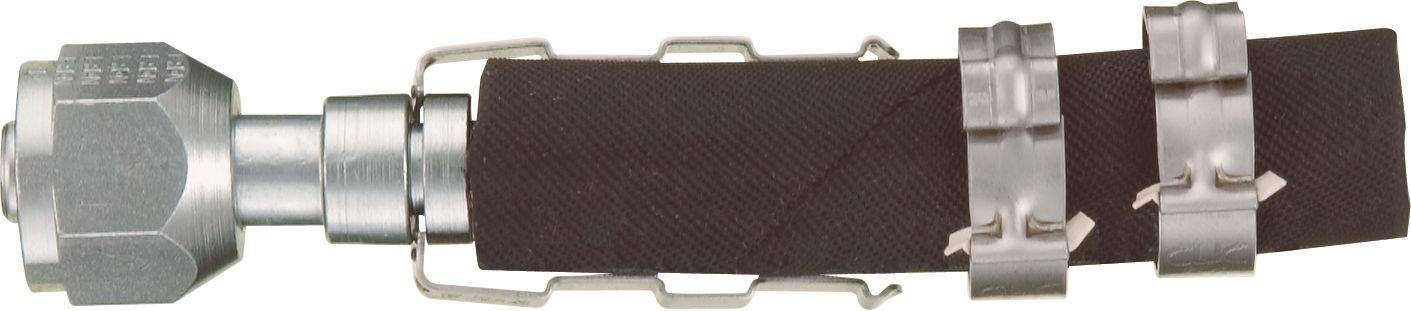

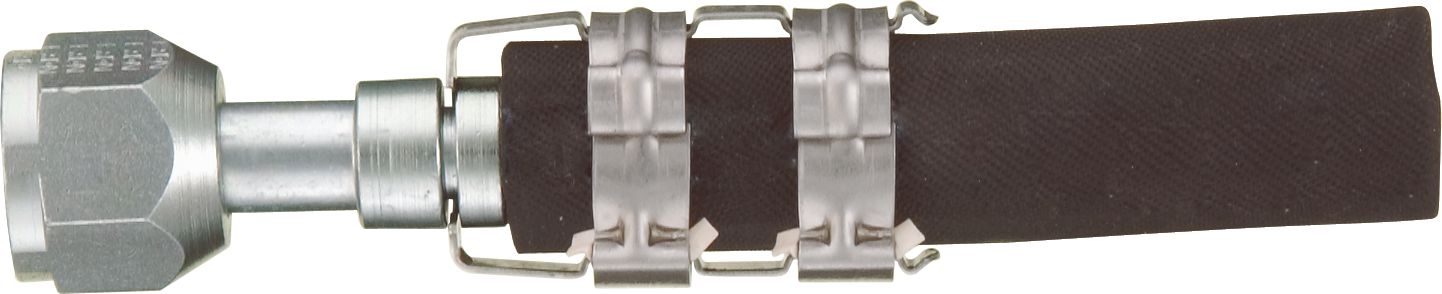

Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Couldn't load pickup availability
Catalog page#: 8-123
Frequently Bought Together
Z Series Crimp-On Hose End 3/8" x 1/2-14
Couldn't load pickup availability
Z Series Crimp-On Hose End 5/8" x 7/8-14
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 3/8" x 9/16-18
Couldn't load pickup availability
KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16
Couldn't load pickup availability
Face Seal O-Ring Buna-N 0.364 x 0.07"
Couldn't load pickup availability
Weatherhead H280 Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Crimp-On Hose Coupling 3/8" x 9/16-18
Couldn't load pickup availability
Constant Torque Hose Clamp SS 2-1/4 to 3-1/8"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17429 |
|---|---|
| Manufacturer Model #: | 1F40104-12C |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 5/8 (-12) " |
| Dash Size | -12 |
| Gender | Hose Clip |
| Fitting End Style | E-Z Clip Hose Clip |
| Fitting Dimension B (Working End) | Hose Clip (-12) |
| Weatherhead No. | 1F40104-12C |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
