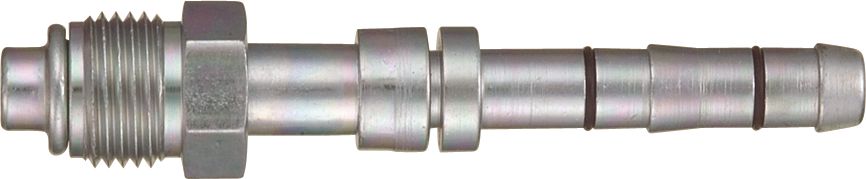

E-Z Clip Series Field Attachable Hose End, Carbon Steel, Male O-Ring Short Pilot Straight, 1/2" (-10) x 7/8-14 (-10)
(Pack of
2)
SKU:17480 Item#: 17480
• Make your own hose assemblies in minutes
• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH134W Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Couldn't load pickup availability
Catalog page#: 8-123
Frequently Bought Together
KH Series Crimp-On Coupling 1/2" x 1-1/16-12
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 3/4" x 1-1/16-12
Couldn't load pickup availability
Crimp-On Coupling 1/2" x 13/16-16
Couldn't load pickup availability
MegaCrimp Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Hydraulic Plug, 7/8-14"(10) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Hydraulic Plug, 9/16-18"(06) Male JIC SAE 37 Degree Flare
Couldn't load pickup availability
Z Series Crimp-On Hose End 3/8" x 9/16-18
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity
• Does not require hose-crimping machinery
• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH134W Multi-Refrigerant Hose
Assembly Instructions
Step 1: Cut the hose. Be sure the cut is made square to the hose length.
Step 2: Slip on two clips.
Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.
Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.
Step 5: Snap the cage into the groove on the nipple.
Step 6: Slide the clips over the cage arms and into the channels on each arm.
Step 7: Close the clips.
E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17480 |
|---|---|
| Manufacturer Model #: | FJ3052-1010S |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/2 (-10) " |
| Dash Size | -10 |
| Gender | Male |
| Fitting End Style | O-Ring Short Pilot |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| Weatherhead No. | FJ3052-1010S |
| Size | (-10)X(-10) |
| Description | Straight |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.4 lb |
