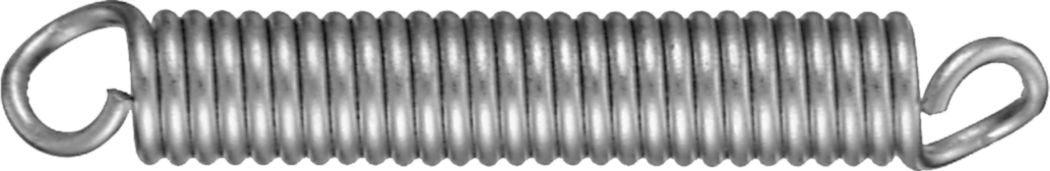

Extension Spring, Steel, 13 Wire Gauge, 55lbs Maximum Work Load, 17/32" OD, 3-1/2" Length
(Pack of 2)

SKU:89645 Item#: 89645

Lawson Products

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Check Availability

Quantity

Catalog page#: 16-40, 16-41

Frequently Bought Together

Extension Spring 3/8 x 4-1/2"

Extension Spring 9/16 x 4"

Extension Spring 3/4 x 4-1/2"

Universal High-Visibility Sorbent Pad

General Purpose Duct Tape 48 mm x 55m

Valve Action® Permanent Paint Marker Red

Universal Sorbent Pad

SafetyPro 8 Mil Nitrile Glove Orange X-Large

Qwik Stik® Electrolyte Powder Mix 0 Cal Fruit Punch

USS Flat Washer Thru-Hardened Steel 1/4"

USS Flat Washer Thru-Hardened Steel 3/8"

Butt Connector 16 to 14 AWG Blue

Automotive Refinishing Tape 2" x 60 Yards

WypAll X80 ShopPro Towel 12.5 x 13.4"

Wypall L30 Wiper 16.4 x 9.8"

Product Description

• Used in applications where a movable part is to be retained or controlled under pressure
• Used in applications where a movable part is to be retained or controlled under pressure

Technical Specifications

Item#:	89645
Type	Extension Spring
O.D.	17/32 "
Length	3-1/2
Wire Diameter	0.092 "
Wire Gauge	13
Initial Tension	20 lb
Rate	38.4 lb./in.
Maximum Work Load	55 lb
Material	Steel
UNSPSC #:	31161907
TAA Compliant:	Yes
Weight:	0.15 lb
